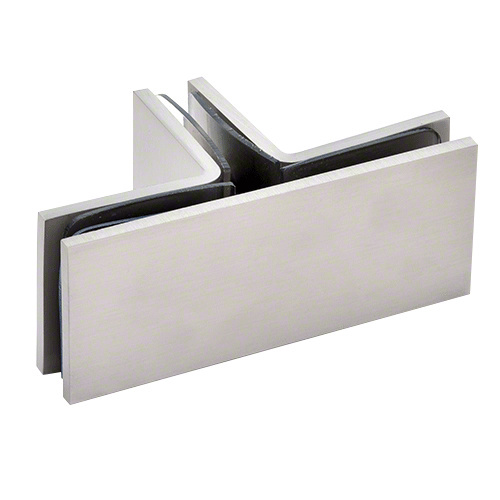

CRL Brushed Nickel Square 90 Degree Glass-to-Glass T-Juntion Clamp

Finish/Color : Brushed Nickel
Brushed Nickel
Polished Chrome
Matte Black
Item #: SGC90TBN
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 1.76 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Nickel Square 90 Degree Glass-to-Glass T-Juntion Clamp
×
CRL Brushed Nickel Square 90 Degree Glass-to-Glass T-Juntion Clamp
Quantity Standard Price Sale Price Your Price
CRL Brushed Nickel Square 90 Degree Glass-to-Glass T-Juntion Clamp Stock
Branch Location STOCK AVAILABILITY
Kent 2
Secaucus 10
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill 6
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta 11
Orlando 3
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix 1
Hazelwood Ask Us 1.800.421.6144
Los Angeles 124
Denver 3
Sunrise 1
Elgin 5
Taunton 1
Dallas 16
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston 10
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Design Style
    Squared
  • Enclosure Type
    Tailor Made Solutions
  • Finish/Color:
    Brushed Nickel
  • Glass To Glass Angle
    90 & 180
  • Glazing Thickness
    3/8 in. To 1/2 in. (10 mm To 12 mm)
  • Height
    2 in. (51 mm)
  • Material
    Brass
  • Mounting Type
    Glass To Glass
  • Width
    5 in. (127 mm)
Back to Top
Product Overview
  • For 3/8" to 1/2" (10 to 12 mm) Glass
  • Used to Secure Fixed Panels of Glass for Frameless Shower Enclosures
  • Solid Brass
  • Special T-Junction Design
  • Glass Fabrication Required to Accommodate Clamps
  • Use Monolithic Tempered Glass

CRL Square 90 Degree Glass-to-Glass Glass-to-Glass T-Junction Clamps have sharp squared off corners. Used to connect two or three fixed glass panels meeting at a 90 degree T-Juntion. Drawings and templates for all Clamps are available.


SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: SGC180, SGC135, SGC90, and SGC186 Require 3/4" (19 mm) Holes; SGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Mounting Screws (for Wall Clamps) and Gaskets

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Back to Top
Technical References & CAD Drawings
Brochures & Literature
Hardware Finish Cross-Reference Guide
Frameless Shower Door Hardware Catalog
Quote Request Forms
Frameless Shower Door Quote Request Form
Templates
SGC90T BGC90T Template
Cleaning & Maintenance
Frameless Shower Door Glass and Hardware Cleaning Instructions
