• Clamp-On Frame with Shelf and Deal Tray Designed for Arenas, Stadiums, Theaters, Etc.
• Drawings and Specifications are Available Online

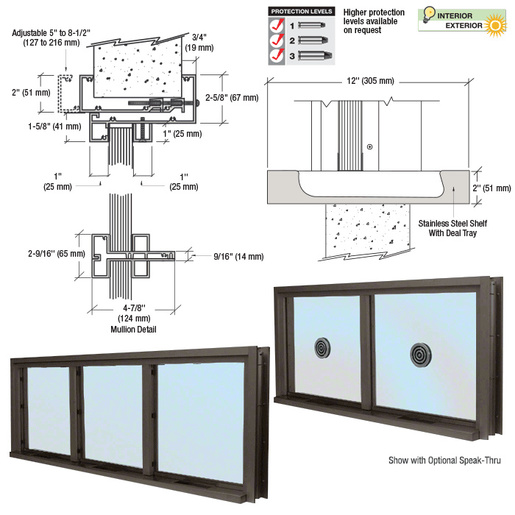

CRL Multi-Lite Clamp-On Frame Windows are commonly used for installations with multiple workstations, such as those found in walk-up ticket offices in arenas, stadiums, movie theaters, and check-cashing stores. Window options include speak-thrus, deal trays, shelves, drop downs, transoms, and more. Clamp-On Frame is designed for installation into walls from 5" to 8-1/2" (127 to 216 mm) thick. For additional information, contact CRL Technical Sales Department.

SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®; Shelf - Stainless Steel
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors; Shelf-Brushed Stainless Steel #4 Finish
Deal Tray: Level 1 or Level 3 Protection
Instructions Included
