CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill

Finish/Color: Satin Anodized
DW4836S0XUA
Item #: DW4836S0XUA
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill
×
CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill
Quantity Standard Price Sale Price Your Price
CRL Standard Size Manual DW Deluxe Service Window Unglazed with S.S.Step-Sill Stock
Branch Location STOCK AVAILABILITY
Product Details
  • Deal Tray Included
    No
  • Finish/Color:
    Satin Anodized
  • Frame Depth (Inches)
    4
  • Glazed
    No
  • Glazing Thickness (Inches)
    1/4, 1/2
  • Height (Inches)
    36
  • Material
    Aluminum
  • Screen
    No
  • Security Feature
    Latching Handle
  • Sill Height (Inches)
    1-1/2
  • Usage
    Interior,Exterior
  • Width (Inches)
    48

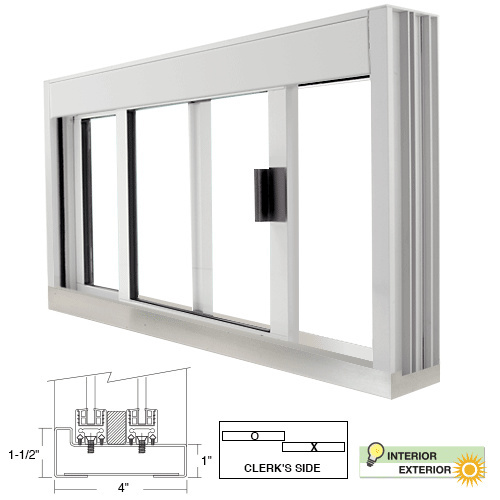

Product Overview
  • Ships Assembled and Unglazed, Vinyl for 1/4" or 1/2" Glass
  • OX Clerkside (X=sliding panel)
  • Sturdy Self-Latching Handle
  • Popular 47-1/2" W x 35-3/4" H Frame Size fits 48" x 36" Opening
  • S.S.Step-Sill with Water Dam, Manual Open/Manual Close

CRL Standard Size Manual Deluxe Service Windows ship fully assembled, ready to glaze or factory glazed and ready to install. They are designed for heavy-duty commercial use such as drive-thru or walk-up service and are also ideal for interior applications needing enhanced security and performance.


Standard size models are available in Satin Anodized or Duranodic Bronze finish. Different models are available with two types of bottom condition: half-track (no track under sliding panel for clear passage across counter by others) or stainless steel step-sill, with water-dam for exterior applications.
CRL also quotes custom versions of these high-quality, popular windows.

CRL DW standard size models that ship unglazed come with two sets of glazing vinyl: one for ¼” glass, and one for ½” glass (the larger vinyl will also accept 9/16” glazing).

For 5/8” glazing vinyl (5/8” is maximum glass thickness for glazing a DW window with vinyl), CRL product # WV3865 can be ordered separately. It is sold by the foot, minimum order 100 feet.

For 3/8” glass, the provided ½” vinyl can be used if the edges of the glass are wrapped with CRL product # 982116X34GRY double-sided adhesive foam tape, with the backing left on the outer edge that enters the glazing vinyl channel. It is sold separately in 200-foot rolls.

Glass sizes for CRL DW standard size models with 47-1/2” W x 35-3/4” H frame size and a stainless-steel step-sill, are 21-3/8” W x 30-15/16” H (two pieces same size).

Product Warning:

Heavy Duty Service Windows; not designed to be primary building seal for severe weather conditions.
