CRL Horizontal Sliding Florence Model Pass-Thru Assembly With D7 Header / No Screen

Finish/Color : Duranodic Bronze
Duranodic Bronze
Item #: D1038DU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : UPS Oversize Rate
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Horizontal Sliding Florence Model Pass-Thru Assembly With D7 Header / No Screen
×
CRL Horizontal Sliding Florence Model Pass-Thru Assembly With D7 Header / No Screen
Quantity Standard Price Sale Price Your Price
CRL Horizontal Sliding Florence Model Pass-Thru Assembly With D7 Header / No Screen Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 4/4/2024
Dallas, Texas 4/9/2024
Chicago (Elgin), Illinois 4/9/2024
San Francisco/Oakland (Union City), California 4/11/2024
Atlanta, Georgia 4/16/2024
New York Area (Secaucus, New Jersey) 4/9/2024
Boston (Taunton), Massachusetts 4/15/2024
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/9/2024
Philadelphia Area (Moorestown, New Jersey) 4/12/2024
Phoenix, Arizona 4/11/2024
Las Vegas, Nevada 4/11/2024
Houston, Texas 4/9/2024
Miami, Florida 4/9/2024
San Diego, California 4/8/2024
Carolinas and Virginia, South Carolina 4/9/2024
Product details
  • Configuration
    XO,OX
  • Finish/Color:
    Duranodic Bronze Anodized
  • Maximum Height
    50 in. (1270 mm)
  • Maximum Width
    72 in. (1828.8 mm)
  • Model
    Florence

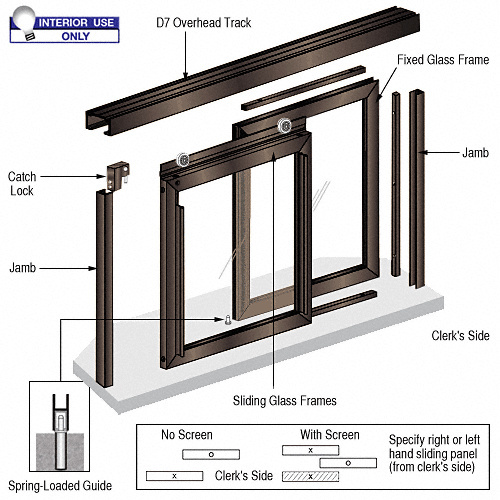

  • Overhead Track
    D7
  • Panel Designation
    O = Fixed, X = Sliding
  • Panel Quantity
    2
  • Usage
    Interior
Product Overview
  • Custom Sized, Ships Knocked-Down
  • Satin Anodized or Duranodic Bronze Anodized Finish
  • Two Panels: One Fixed, One Sliding
  • Order with or without Screen

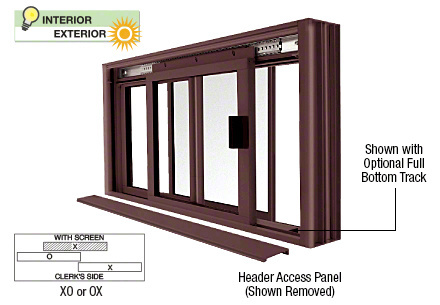

The CRL Florence Pass-Thru Window is the most popular window of its type. Two equal panels (one fixed one sliding) give the benefit of an unobstructed counter surface and an easy rolling overhead track. Ideal for receptionist windows and typical office and pass-thru applications.

Different models are available with two types of headers: The standard D7 Overhead Track, or the D1670 overhead Track which matches 1-3/4" x 3" (44.5 x 76.2 mm) store front tube. Different models are also available with or without screen.

Suggested glass cutting formula for using CRL glazing vinyl is available in the installation guide. Recommended glass sizes are provided by CRL engineering for confirmed orders.

NOTE: These Horizontal Sliding Pass-Thru Assemblies are recommended for interior application only. Each assembly is sold without glass, and includes two kinds of glazing vinyl: for 3/16" (5 mm) or 1/4" (6 mm) glazing. All assemblies are ordered by the frame size, see installation guide for recommended deductions. Frame members are color coded to facilitate assembly and glazing.

Weight: Varies per custom size

Product Warning:

Maximum frame size 72" (1829 mm) W x 50" (1270 mm) H with two equal panels
