• For Use with 3/8" to 9/16" (10 to 13.52 mm) Tempered Glass
• Designed for the 'All-Glass' Look
• One Fitting for Either Flush or Surface Mount Installations
• Rigid or Swivel Countersunk or Cap Glass Attachments Available
• Made of 316 Alloy Stainless Steel in Two Attractive Finishes: Brushed and Polished
• Replacement Gasket Set is Cat. No. RRF10RW
• Use Monolithic Tempered Glass

The CRL Rigid Head Attachments allow for a secure attachment, and minimize the deflection of the glass panels. This type of fitting is typically used only for interior applications.

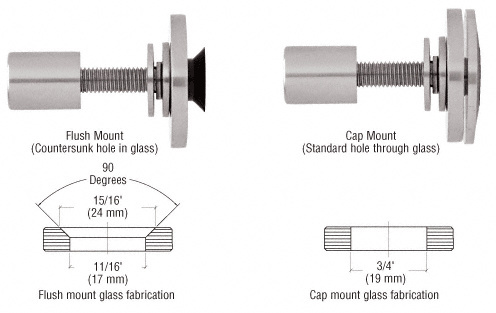

Our special Rigid Head Combination Glass Attachment Fittings can be used for 'flush' mounting for a smooth exterior surface when the glass is fabricated with a countersunk hole. This same Fitting can be used for the 'cap' type of mounting when using the supplied adapter washer. This requires just a standard hole in the glass.

NOTE: Either the Rigid Head or Swivel Head Combination Glass Attachments can be used with all Regular Duty or Mini Spider Fittings.

NOTE: We suggest when using the flush mount method that you give your glass fabricator a sample Flush Mount Glass Attachment to ensure a proper flush fit.

Product Warning:

Do Not Use with Annealed or Raw Glass.

Stainless Steel Advisory:
