CRL Mill Aluminum B7S Series Custom Length Square Base Shoe for 3/4" Glass

Item #: B7SDC
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Mill Aluminum B7S Series Custom Length Square Base Shoe for 3/4" Glass
×
CRL Mill Aluminum B7S Series Custom Length Square Base Shoe for 3/4" Glass
Quantity Standard Price Sale Price Your Price
CRL Mill Aluminum B7S Series Custom Length Square Base Shoe for 3/4" Glass Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144

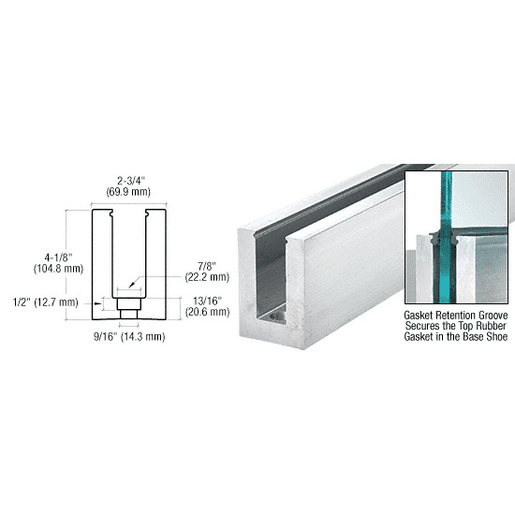

Product Details
  • Drilling Center To Center
    12 in. (305 mm)
  • Finish/Color:
    Mill
  • Glass Included
    No
  • Glazing Thickness
    3/4 in. (19 mm)
  • Height
    4-1/8 in. (105 mm)
  • Length
    Specify
  • Material
    Aluminum
  • Width
    2-3/4 in. (70 mm)
Product Overview
  • Typically Used as the Base Channel for Glass Railing Systems in Arenas
  • For 3/4" (19 mm) Monolithic Tempered Glass
  • Pre-Drilled in 10' and 20' Lengths
  • Works with TL5
  • Custom Cutting and Mitering Service

The CRL B7S Series Heavy-Duty Square Base Shoe is used as the base channel for glass railing systems. It can be clad in six choices of architectural finishes. The most critical component in a railing system is the proper attachment of the Base Shoe to the substrate. CRL has engineered and tested a variety of attachment methods, and has developed an acceptable combination of drilling patterns and fasteners. A printed brochure with instructions, installation hints, cleaning, and refinishing techniques is available.


GLASS SPECIFICATONS:
3/4" (19 mm) Thick Glass when using TAPER-LOC™ Dry Glaze System or Wet Glaze System.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
