CRL 316 Brushed Stainless Crisp Corner 11 Gauge Cap Railing

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: GRLC10BS6
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Brushed Stainless Crisp Corner 11 Gauge Cap Railing
×
CRL 316 Brushed Stainless Crisp Corner 11 Gauge Cap Railing
Quantity Standard Price Sale Price Your Price
CRL 316 Brushed Stainless Crisp Corner 11 Gauge Cap Railing Stock
Branch Location STOCK AVAILABILITY
Kent 2
Secaucus 29
Solon Ask Us 1.800.421.6144
Union City 18
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego 3
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix 1
Hazelwood Ask Us 1.800.421.6144
Los Angeles 53
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin 15
Taunton 8
Dallas Ask Us 1.800.421.6144
Tampa 2
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144

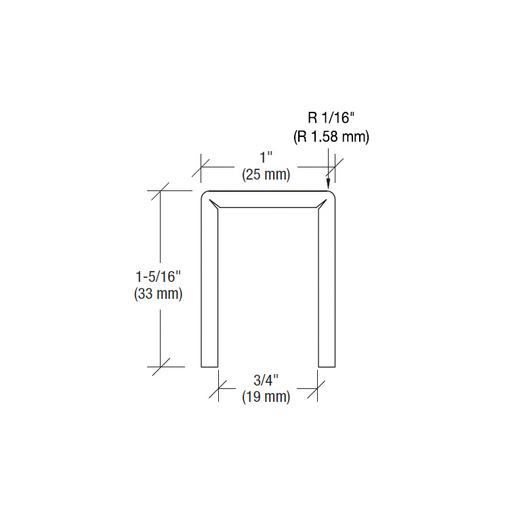

Product Details
  • Alloy
    316
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    1/2 in. & 5/8 in. (12 mm & 16 mm)
  • Height
    1-5/16 in. (33 mm)
  • Length
    120 in. (3048 mm)
  • Material
    Stainless Steel
  • Width
    1 in. (25 mm)
Product Overview
  • Crisp Corner Profile for 1/2" (12 mm) or 5/8" (16 mm) Monolithic Glass
  • Designed for Use as a Top Rail for Guard Rail Applications
  • Protects Glass Edge
  • Secures Glass Panels Together
  • Available in Two Architectural Finishes
  • Connects to Fabricated Corners and End Caps

CRL Crisp Corner Low Profile Cap Rail is made from 11 gauge stainless steel, and is designed to protect the edge of the glass and secure glass panels together.


NOTE: When used with 1/2" (12 mm) glass, GR5PV Cap Rail Vinyl and 95CBL Silicone should be used to secure the glass. When used with 5/8" (16 mm) glass, secure with 95CBL Silicone and shims.

SPECIFICATIONS:
Material: 304 Stainless Steel
Thickness: 11 Gauge
Stock Length: 10' (3.05 m)
Typical Uses: Protect Edges of Glass and Secure Glass Panels Together in Cap Railing Installations

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
