CRL Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

Finish/Color : Brushed Stainless Steel

Brushed Stainless Steel

Polished Stainless Steel

Item #: ZL910BS

View Prices with a Purchase Account

Minimum Order Quantity : 1

Unit of Measure : each

Where to buy

View Technical References

Shipping Weight : 13.52 Ounces

Shipping Limitations : None

Compliance and Restrictions

Warning Reproductive Harm - www.p65warnings.ca.gov

CRL Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

❮

❯

CRL Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate

Quantity	Standard Price	Sale Price	Your Price

CRL Brushed Stainless Steel Z-Series Square Type Flat Base Zinc Clamp for 3/8" and 1/2" Glass with Repositionable Plate Stock

Branch Location	STOCK AVAILABILITY

Related Products

Quick view

CRL Heavy-Duty Thread Insert Tool

Item # : 34604

CRL 5/16"-18 Mandrel and Nosepiece

Item # : 34618

CRL Brushed Stainless Z-Series Square Type Flat Base Stainless Steel Clamp for 1/2" Glass

Item # : Z912BS

CRL Z-Clamp Lag Bolt 5/16" x 2"

Item # : ZLAG

CRL 5/16"-18 Rivet Nut

Item # : ZRNUT

Product Details Product Overview Technical References & CAD Drawings

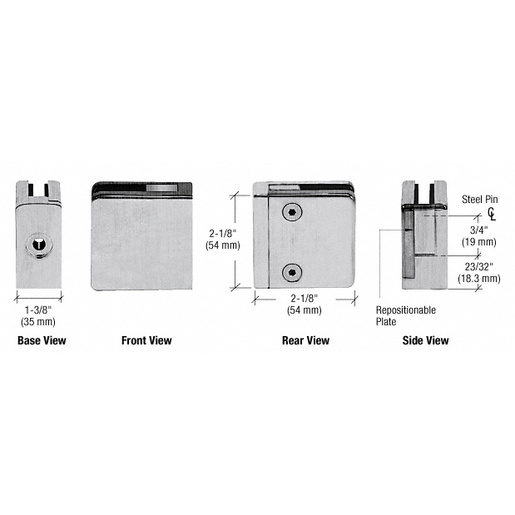

Base Type

Flat
Depth

1-3/32 in. (28 mm)
Finish/Color:

Brushed Stainless Steel
Glazing Thickness

3/8 in. & 1/2 in. (10 mm To 12 mm)
Height

2-1/8 in. (54 mm)
Material

Stainless Steel 316 Alloy
Profile

Square
Width

2-1/8 in. (54 mm)

Repositionable Plate for Use at Right or Left Corner of Glass
For Use with Square Tubing or Other Flat Surfaces
For 3/8" or 1/2" (10 or 12 mm) Glass
Use Monolithic Tempered Glass

This CRL Z-Series Square Type Flat Base Glass Clamp with Repositionable Plate is designed to be used on glass thickness of 3/8" or 1/2" (10 or 12 mm). The flat base allows for installation onto square tubing or other flat surfaces. Material is constructed of 316 Stainless Steel.

Note: Replacement screws are available by ordering CRL Cat. No. ZCS5X15SS & for Replacement gaskets order CRL Cat. No. ZL38SG

SPECIFICATIONS:

Glass Thickness: 3/8" or 1/2" (10 or 12 mm)

For Use With: Flat Surfaces

Material: Stainless Steel 316 Alloy

Fabrication:
For 3/8" (10 mm) Thick Glass: 1/2" (12 mm) diameter hole required if using provided steel pin for glass support.
For 1/2" (12 mm) Thick Glass: 9/16" (14 mm) diameter hole required if using provided steel pin for glass support.

Includes: Repositionable Plate (ZL Series only)

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:

Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
