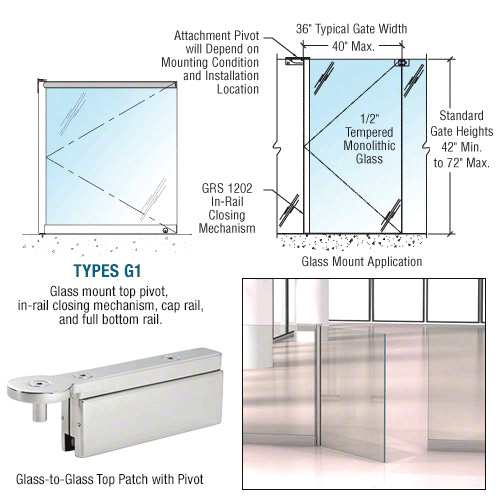

• Heavy-Duty Glass Gate With Optional Cap Rail
• Beautiful in Design and Functional in Operation
• Unique Closing Device Located in Vertical Post
• Round Vertical Edge Gate Pivot Post Prevents Finger Pinch
• For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
• Double Acting (No Hold Open) Design
• Optional Locks Available

We have developed a series of Swinging Gates for commercial or residential use, either alone or with our GRS Glass Rail System. The gates are an offshoot of our Wedge-Lock® Door Rail System, and can be combined with our GRS Cap Rails. The top and bottom of the Gate swings on heavy-duty ball bearing pivots.


Our engineers have designed a unique In-Rail Closing Mechanism which is concealed in the vertical post, eliminating the need for large enclosures in the floor. The closer always returns the Gate to the closed position, and the closing speed is adjustable.

NOTE: Available by custom order only. Most orders can be fabricated in five business days at our Los Angeles, California manufacturing facility. Contact our Technical Sales Department for assistance.


Product Warning:

All Swinging Gates are custom fabricated to your specifications.

Stainless Steel Advisory:
