CRL 316 Brushed Stainless Edge Grip for 1/4" Material

Finish/Color : Brushed Stainless Steel
Item #: EG14BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 5.44 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 316 Brushed Stainless Edge Grip for 1/4" Material
×
CRL 316 Brushed Stainless Edge Grip for 1/4" Material
Quantity Standard Price Sale Price Your Price
CRL 316 Brushed Stainless Edge Grip for 1/4" Material Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1700
Dallas, Texas 97
Chicago (Elgin), Illinois 691
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 118
New York Area (Secaucus, New Jersey) 94
Boston (Taunton), Massachusetts 4/8/2024
Orlando, Florida 4
Denver, Colorado 5
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 4/4/2024
Las Vegas, Nevada 4
Houston, Texas 104
Miami, Florida 94
San Diego, California 4
Carolinas and Virginia, South Carolina 84

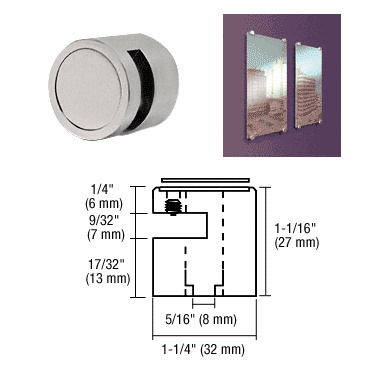

Product details

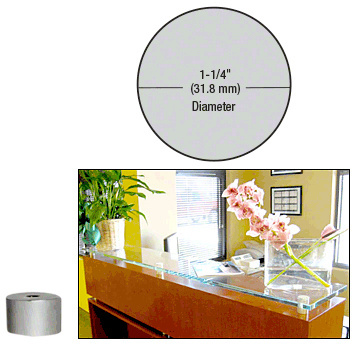

  • Diameter
    1-1/4 in. (31.8 mm)
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    1/4 in. (6 mm)
  • Height
    1-1/16 in. (27 mm)
  • Material
    316 Stainless Steel
Product Overview
  • For 1/4 (6.3 mm) Material Thickness
  • No Drilling Required in Glass or Panel Materials
  • Can be Used on Corners and Edges of Panels
  • Supplied with a EGCS Socket Head Cap Screw

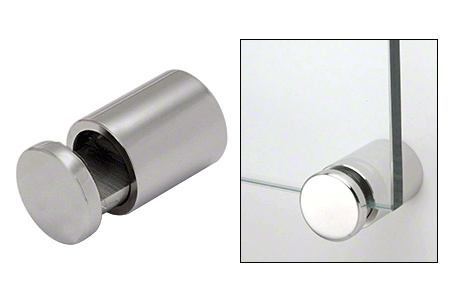

CRL's Edge Grips provide additional flexibility in attaching decorative panels or signage to walls or substrates. The Edge Grip allows material to be held to the wall without drilling holes in the face material. This allows for quick installation or adjustment of panels mounted in Edge Grips. 1-1/4" (32 mm) diameter Edge Grips are available in brass, chrome, satin chrome, 316 brushed stainless, and gun metal finishes, and are compatible with CRL standoffs. It is recommended that CRL Edge Grips be utilized at the top, bottom and sides of heavier panels for maximum support.


Product Warning:

We recommend CRL Edge Grips be used at the top, bottom, and sides of heavier panels for maximum support.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
