CRL Brass Cam Lock with Stop Plate for 1/4" or 3/8" Glass - Randomly Keyed

Finish/Color : Polished Brass
Polished Brass
Polished Chrome
Item #: EH96
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 3.37 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brass Cam Lock with Stop Plate for 1/4" or 3/8" Glass - Randomly Keyed
×
CRL Brass Cam Lock with Stop Plate for 1/4" or 3/8" Glass - Randomly Keyed
Quantity Standard Price Sale Price Your Price
CRL Brass Cam Lock with Stop Plate for 1/4" or 3/8" Glass - Randomly Keyed Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego 1
Atlanta Ask Us 1.800.421.6144
Orlando 1
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 100
Denver Ask Us 1.800.421.6144
Sunrise 1
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Finish/Color:
    Polished Brass
  • Keyed
    Random
  • Material
    Brass
Back to Top
Product Overview
  • For 1/4" or 3/8" (6 to 10 mm) Thick Glass
  • An Excellent Showcase Lock
  • Chrome or Brass Finishes

CRL Cam Locks are suitable for 1/4" or 3/8" (6 or 10 mm) thick glass. Tightening is done by means of two plastic tipped screws. The key can be removed in both the locked and unlocked positions. Lock is supplied with gaskets and template. A matching Stop Plate is included to match the finish of the lock of choice. A cut-out in the glass door is required for installation and a notch template is included in the package.


The key can be removed in both the locked and unlocked positions.


Product Warning:

The inside channel dimension of this lock is .397" (10.08 mm). If installing Lock on 10 mm thick glass, measure the glass thickness prior to any glass fabrication.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Back to Top

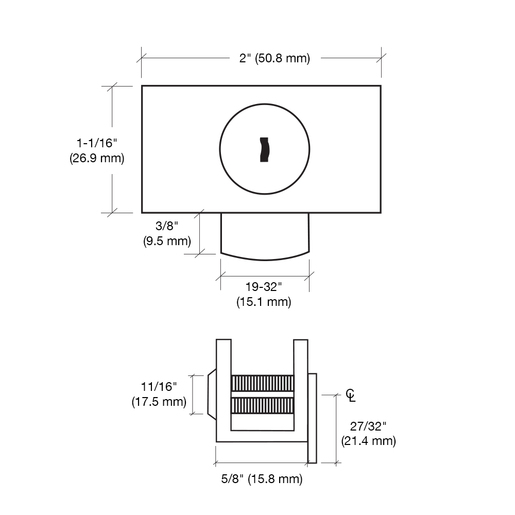

Technical References & CAD Drawings
CAD Drawings - pdf
EH96 EH96KA EH98 EH98KA Glass Fabrication Drawings.pdf
CAD Drawings - dwg
EH96 EH96KA EH98 EH98KA Glass Fabrication Drawings.dwg
Cleaning & Maintenance
Brass Finish Disclaimer
