CRL Chrome Free Swinging Offset Pivot Hinge

Finish/Color : Polished Chrome
Polished Chrome
Item #: FA044CH
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 11.2 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Chrome Free Swinging Offset Pivot Hinge
×
CRL Chrome Free Swinging Offset Pivot Hinge
Quantity Standard Price Sale Price Your Price
CRL Chrome Free Swinging Offset Pivot Hinge Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 102
Dallas, Texas 4/5/2024
Chicago (Elgin), Illinois 4
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 4/8/2024
New York Area (Secaucus, New Jersey) 22
Boston (Taunton), Massachusetts 4/8/2024
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 4/4/2024
Las Vegas, Nevada 4/4/2024
Houston, Texas 2
Miami, Florida 4/9/2024
San Diego, California 100
Carolinas and Virginia, South Carolina 4/9/2024

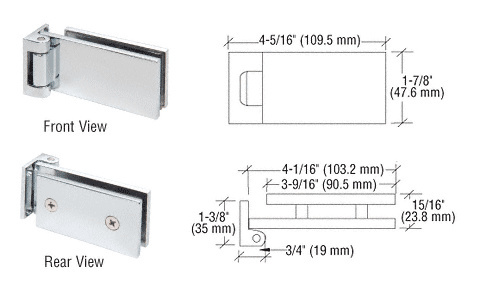

Product details
  • Finish/Color:
    Polished Chrome
  • Glazing Thickness
    5/16 To 3/8 in. (8 mm To 10 mm)
  • Height
    1-7/8 in. (47.6 mm)
  • Material
    Brass
  • Maximum Door Width
    32 in. (812.8 mm)
  • Weight Capacity
    96 lbs. (43.5 kg)
  • Width
    4-5/16 in. (109.5 mm)
Product Overview
  • For 5/16" to 3/8" (8 to 10 mm) Glass
  • Offset Pivot Point Allows Full 180 Degrees Swing
  • Two 5/8" (16 mm) Holes Required

The free swinging CRL Offset Pivot Hinge is perfect for light duty doors, such as partitions and smaller entry doors. Also commonly used for cabinet doors. This Hinge requires only two 5/8" (16 mm) holes in the glass, and is available in popular polished brass and polished chrome finishes. Includes gasket and hole drilling template.

SPECIFICATIONS
  • Glass Size: 5/16" and 3/8" (8 and 10 mm)
  • Construction: Solid Brass Casting
  • Closing Type: Free Swinging
  • Glass Fabrication: Two 5/8" (16 mm) Holes Required
  • Includes: Gaskets and Template

    The maximum recommended door width using two hinges is 32" (813 mm) and maximum weight should not exceed 96 lbs. (43 kg). The maximum recommended door width using three hinges is 36" (914 mm) and maximum weight should not exceed 140 lbs. (63 kg).
