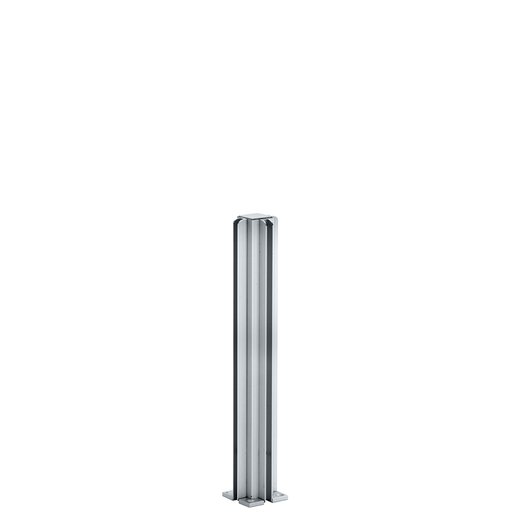

CRL Satin Anodized 12" 4-Way Design Series Partition Post

Item #: D990A124W
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 1.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Anodized 12" 4-Way Design Series Partition Post
×
CRL Satin Anodized 12" 4-Way Design Series Partition Post
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized 12" 4-Way Design Series Partition Post Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 23
Dallas, Texas 4/5/2024
Chicago (Elgin), Illinois 4/5/2024
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 4/8/2024
Boston (Taunton), Massachusetts 4/8/2024
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 3
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 4/4/2024
Las Vegas, Nevada 4/4/2024
Houston, Texas 4/5/2024
Miami, Florida 4/9/2024
San Diego, California 4/3/2024
Carolinas and Virginia, South Carolina 1
Product details
  • Base Type
    Square Flat - Mechanical
  • Cap Type
    Flat
  • Configuration
    4-Way Post
  • Finish/Color:
    Satin Anodized
  • Glazed
    No
  • Glazing Attachment Type
    U-Channel
  • Glazing Thickness
    1/4 in. (6 mm)
  • Height
    12 in. (304.8 mm)
  • Material
    Aluminum
  • Series
    Design
  • Tube Size
    1-1/8 in. (28.6 mm)
  • Tube Type
    Square
Product Overview
  • Stock Post Sizes, RED-E to Ship
  • Standard Heights of 12", 18", and 24" (305, 457, and 610 mm) Available in Four Finishes
  • Five Standard Configurations – End, Center, Corner, 3-Way, and 4-Way
  • Aluminum Tubing with Full Length Channels for 1/4" (6 mm) Glass
  • Top Cap and Mounting Base Included
  • Use Monolithic Tempered Glass

CRL Design Series Partition Posts are very popular, available in the standard stock sizes and are ready for immediate delivery. These Posts have been used for years in banks, offices, and restaurants. A slim line profile and easy-to-install Mounting Base have made them a favorite in the industry. The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone. Also available in some finishes and sizes are Custom 135 Degree Posts. Each Post contains one attached Top Cap, one attached Mounting Base, and four Wood Screws for mounting.

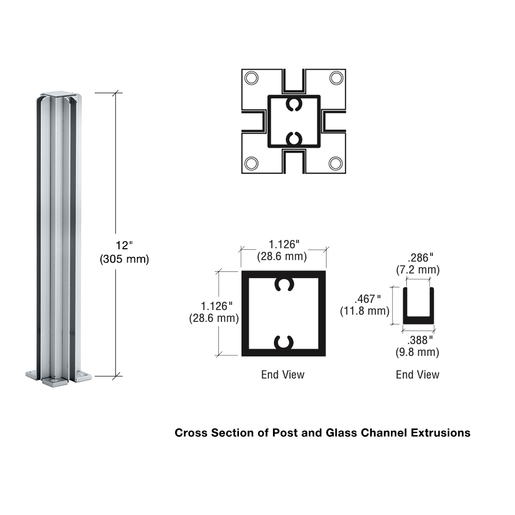

These fully assembled Design Series Posts measure 1-1/8" (28.6 mm) square. Post Mounting Base Plates measure 2" (51 mm) square. Glazing Channels measure full length and rise 15/32" (12 mm) from the post surface. Glazing Vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill glass channel.

You can also "Make Your Own" Design Series Partition Posts With CRL Components. Instructions and requirements, parts page.

Product Warning:

The glass is easily secured into the glazing channels using Cat. No. 33SC Clear Silicone.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
