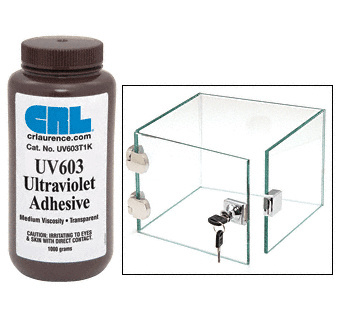

CRL UV603 Medium Viscosity UV Adhesive - 1000g

Item #: UV603T1K
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.203 Pounds
Shipping Limitations : Hazardous Material - No Air Shipments
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL UV603 Medium Viscosity UV Adhesive - 1000g
×
CRL UV603 Medium Viscosity UV Adhesive - 1000g
Quantity Standard Price Sale Price Your Price
CRL UV603 Medium Viscosity UV Adhesive - 1000g Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 10
Dallas, Texas 4/5/2024
Chicago (Elgin), Illinois 4/5/2024
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 4/8/2024
New York Area (Secaucus, New Jersey) 4/8/2024
Boston (Taunton), Massachusetts 4/8/2024
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4/5/2024
Phoenix, Arizona 4/4/2024
Las Vegas, Nevada 4/4/2024
Houston, Texas 4/5/2024
Miami, Florida 4/9/2024
San Diego, California 4/3/2024
Carolinas and Virginia, South Carolina 4/9/2024
Product details
  • Acceptable Bond line Gap
    0.5 mil To 1 mil(0.013 mm To 0.025 mm)
  • Contents
    1000 Grams
  • Glazing Thickness
    1/4
  • Medium Viscosity
    Yes
  • Shelf Life
    12 Months
  • Shore D Hardness
    25-35
  • Tensile Strength
    2400 psi(16547.4 Kpa)
  • Wrist Circumference
    1/4 in. (6 mm)
Product Overview
  • Extremely Flexible for Bonding Different Materials and Surface Bonding
  • Capillary Action
  • Acceptable Bondline Gap: 0.5 to 1 mil (.0127 to .0254 mm)
  • Tensile/Shear Strength: 1450 psi
  • Shore D Hardness: 25-35
  • Optically Clear

CRL UV603 is a medium viscosity, 100% solids, general purpose adhesive that forms resilient, high strength bonds between materials such as glass, metal, ceramic, and many plastics.

CRL UV603 is extremely flexible and demonstrates outstanding elongation making it ideal for bonding different materials, as well as for surface bonding up to 1m² (10.8 ft²). It shows good capillary action with glass up to 1/4" (6 mm) thick. For thicker glass apply to the bonding surface prior to assembly.

Bonds prepared with CRL UV603 are optically clear as well as resistant to moisture and yellowing. The adhesive cures within seconds upon exposure to ultraviolet light. The speed of cure depends on the UV intensity as measured at the product surface, as well as the adhesive depth. Store adhesive away from sunlight.

Cleaner and Degreaser provides for optimum adhesion when used first to prepare the glass by removing any dirt and grease that is present.

Note: When bonding plastics, always test first, as not all plastics can be bonded properly. Do not bond any coated parts (powder coated or galvanized) with this adhesive.

Product Warning:

Shelf Life: 12 months from lot # date on label
