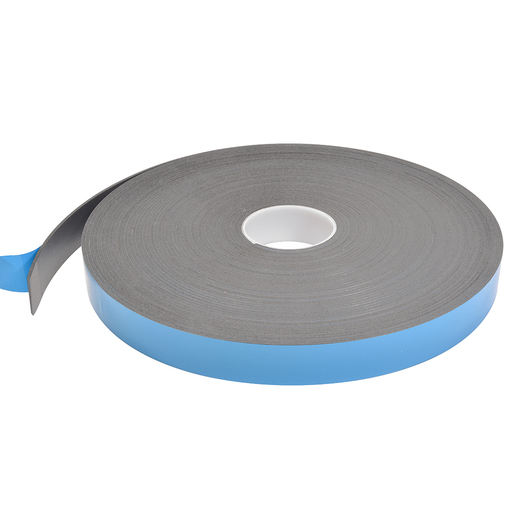

CRL Gray 1/8" x 1-1/2" Single Sided Foam Glazing Tape

Finish/Color : Gray
Gray
Item #: 74418X112GRY
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Roll

Shipping Weight : 1.28 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Gray 1/8" x 1-1/2" Single Sided Foam Glazing Tape
×
CRL Gray 1/8" x 1-1/2" Single Sided Foam Glazing Tape
Quantity Standard Price Sale Price Your Price
CRL Gray 1/8" x 1-1/2" Single Sided Foam Glazing Tape Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 19
Dallas, Texas 18
Chicago (Elgin), Illinois 4
San Francisco/Oakland (Union City), California 4/4/2024
Atlanta, Georgia 5
New York Area (Secaucus, New Jersey) 4/8/2024
Boston (Taunton), Massachusetts 5
Orlando, Florida 4/9/2024
Denver, Colorado 4/9/2024
Seattle (Kent), Washington 4/9/2024
Cleveland (Solon), Ohio 4/5/2024
Philadelphia Area (Moorestown, New Jersey) 4
Phoenix, Arizona 4/4/2024
Las Vegas, Nevada 4/4/2024
Houston, Texas 4/5/2024
Miami, Florida 4/9/2024
San Diego, California 4/3/2024
Carolinas and Virginia, South Carolina 4/9/2024
Product details
  • Case Quantity
    5 Rolls
  • Finish/Color:
    Gray
  • Roll Length
    100 ft.(30 m)
  • Thickness
    1/8 in. (3 mm)
  • Type
    Foam
  • Width
    1-1/2 in. (38 mm)
Product Overview
  • Excellent Adhesion to Wood, Vinyl (Rigid PVC), Aluminum, and Glass
  • Superior Resistance to Weathering, Oxidation, and UV Exposure
  • Meets AAMA 810.1 Certification
  • Aggressive Adhesive
  • Service Temperature Range From – 40°F to 180°F (-40°C to 82°C)
  • Available in Gray and Black

CRL Foam Glazing Tape is a closed-cell polyethylene foam sealant in tape form. The aggressive acrylic adhesive is formulated to position the foam on curved or irregular surfaces with the slightest pressure. Adheres to wood, vinyl, aluminum, and glass. It can be used as an exterior glazing sealant - particularly where glass repositioning is important before the final setting.


CRL Foam Glazing Tape is specifically designed to be a primary or secondary seal in a variety of glazing systems. It is self-shimming, so you don't need shims or spacers. The tape is constructed with a patented cellular structured foam that is particularly resistant to weathering and water-absorption, while providing a superior long-lived seal.

Joints sealed with CRL Foam Glazing Tape with Adhesive on One Side can be opened and closed, repositioned, and used without the sticky mess associated with sealants. Use this tape in demountable partitions, louvers, formwork, access panels, doors, and other operable or temporary joints. The non-adhesive face will release cleanly from most surfaces. When a joint is opened the tape recovers most of it original uncompressed thickness and is ready-to-use again.

CRL FOAM GLAZING TAPE WITH ADHESIVE ON ONE SIDE HAS THE FOLLOWING FEATURES:
  • Simplicity: Requires no clean-up, easy to handle, no waste, requires no mixing or special application equipment.
  • Preformed tape provides consistent and accurate application. No shim is required.
  • Remains flexible at low temperatures and dimensionally stable at high temperatures.
  • Special non-yellowing, non-staining water-white adhesives provide a clean, aesthetic appearance.
  • Superior resistance to weathering, oxidation, and ultraviolet exposure.
  • Seals effectively against water, dust, and light.
  • Variety of available sizes

    A minimum of 30% compression must be maintained to provide an effective moisture seal. In small lites, this may be achieved by applying pressure directly to the glazing tape when installing glazing stops. However, in most lites, the use of a compression wedge gasket is recommended. Apply with firm, uniform pressure to a clean, dry surface without stretching (the paper liner indicates if the tape has been stretched). Tape corners should be cut and butted together, rather than overlapped or radiused, and a thin bead of an approved seal sealant should be applied at the intersection after the liner has been removed. In-service temperature range is –40° to 180° (-40° to 82°C). CRL Foam Glazing Tape is compatible with other sealing and glazing compounds.

    ENERGY STAR®– CRL is an ENERGY STAR® partner, and our fenestration foam glazing tapes carry the ENERGY STAR® seal. ENERGY STAR® is a government backed program helping businesses and individuals protect the environment through superior energy efficiency.

    Product Warning:

    CRL Vinyl Foam Glazing Tape must be compressed 15% to maintain an effective seal. In small lites, this may be achieved by applying pressure directly to the glazing tape when installing glazing stops. However, in most lites, the use of a compression wedge gasket is recommended.
