• Reaches Into the Glass Case to Lift Large Lites
• Fast Vacuum Cup Attachment and Release
• Speeds Production Lines
• Load Capacity - 500 Lbs. (225 Kg)

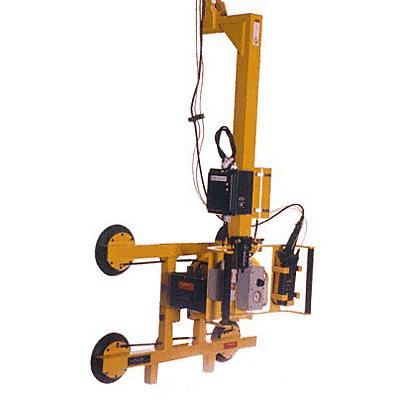

This CRL Wood's Powr-Grip® C-Frame Vertical Lifter 500 Series has a unique shape that enables the operator to easily remove glass from shipping crates with the crate's face removed. Its rugged construction is designed for long service life on high volume production lines.


SPECIFICATIONS:
Standard Vacuum Pad Spread:
29-1/4" x 39-1/4" (740 x 994 mm)

Number / Size of Vacuum Pads:
4 / 9" (229 mm) diameter vacuum pads

Load Capacity:
500 lbs (225 kg)

Standard Operating Power:
120 volts AC, 50/60 hertz, 5 amps (Other voltages available)

Apply / Release Times:
1 second / 1 second (approx)

Load Movement:
Upright to upright

Throat Depth:
14-1/2" (371 mm)

Standard Features:
Green lift light
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Industrial grade switches
Twist-lock electrical plug
Blow-off for quick release

Alternative Power Systems:
DC power system
Air (venturi) power system
(Specifications may not be as listed above. Please contact us for more information.)

Available Options:
Vacuum loss warning buzzer
12-Volt/DC vacuum back-up system
Individual vacuum pad shutoffs

Design Standards:
ASME B30.20-2006
(BTH-1 Design Category "B", Service Class "0")
