• Innovative Quadra-Tilt Linkage Reduces the Effort of Tilting Loads
• 200 lbs. (90 kg) Lifting Capacity

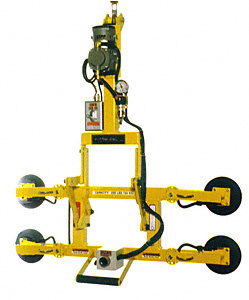

The CRL Wood's Powr-Grip® DC Powered 4-Pad Quadra-Tilt Lifter features an innovative four-bar tilt mechanism that significantly reduces the effort of tilting loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks: When a load is tilted to either the upright or the flat position, the vacuum lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees. The vacuum lifters also feature multi-position vacuum pad arms that accommodate a variety of load sizes and shapes. Holes or defects in the load surface are easily avoided because vacuum pads can attach to virtually any location on the load. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.


SPECIFICATIONS:
Adjustable Vacuum Pad Spread:
Length: Min: 13" (330 mm), Max: 39" (991 mm)
Width: Min: 9" (229 mm), Max: 30" (762 mm)
Number/Size of Vacuum Pads: 4"/6" (153 mm) Diameter Vacuum Pads
Lifting Capacity: 200 lbs. (90 kg)

Standard Operating Power:
120 volts AC, 60 hertz, 3 amps (240 volts AC, 50/60 hertz, 2 amps also available)

Alternative Power Systems:
DC Power System (Cat. No. MTA4LP6FDCS)
Air (Venturi) Power System (Cat. No. MTA4LP6FA1R)

Load Movement:
Assisted Manual Tilt, 90 degrees between upright and flat

Standard Features:
Vacuum Gauge
Vacuum Line Filter
Movable Pad Arms
Spring-mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Multiple Handles For Easy Load Positioning

Available Options:
Vacuum Loss Warning Buzzer (Cat. No. E03VLW 2" (51 mm) Pad Spacer (Cat. No. CM3PE2)
Voltage Adaptation (Cat. No. E06VA)
Alternative Frame Dimensions and Capacities
