• Load Capacity 1400 Lbs. (635 kg)
• Eight 11" (280 mm) Diameter Cups
• Unique Four-Bar Tilt Mechanism
• Load Movement is 360 Degrees Edgewise with Automatic Locking at Each 1/4 Revolution, Assisted Manual Tilt is 90 Degrees Between Upright and Flat

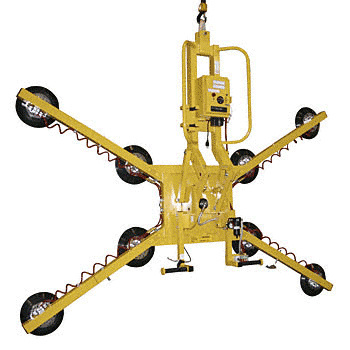

CRL Quadra Tilt Lifters feature a unique four-bar mechanism that significantly reduces the effort of tilting heavy loads between flat and upright positions. This tilt mechanism also reduces hazards associated with lifting loads from upright racks. When a load is tilted to either the upright or the flat position, the lifter maintains the load position automatically without using latches, eliminating the tendency for a load to "kick back" at the operator's knees.


INCLUDES: Low vacuum warning light, On-board battery and charger, Battery energy gauge, Vacuum gauge, Vacuum line filter, Vacuum reserve tank, Spring-mounted pads, Removable pad mounts, Extension arms, and Blow-off for quick release.
