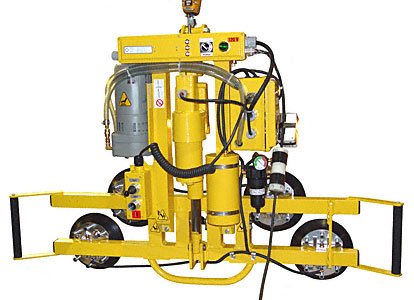

CRL Wood's Powr-Grip® Windshield Power Tilter

 Discontinued item. All sales are final.
No longer available.
Item #: PT410AC
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Wood's Powr-Grip® Windshield Power Tilter
×
CRL Wood's Powr-Grip® Windshield Power Tilter
Quantity Standard Price Sale Price Your Price
CRL Wood's Powr-Grip® Windshield Power Tilter Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Chicago (Elgin), Illinois Ask Us 800.421.6144
San Francisco/Oakland (Union City), California Ask Us 800.421.6144
Atlanta, Georgia Ask Us 800.421.6144
New York Area (Secaucus, New Jersey) Ask Us 800.421.6144
Boston (Taunton), Massachusetts Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Denver, Colorado Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Cleveland (Solon), Ohio Ask Us 800.421.6144
Philadelphia Area (Moorestown, New Jersey) Ask Us 800.421.6144
Phoenix, Arizona Ask Us 800.421.6144
Las Vegas, Nevada Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Miami, Florida Ask Us 800.421.6144
San Diego, California Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Brand
    Wood's Powr-Grip
  • Configuration
    Tilter
  • Load Movement
    Power tilt, 90 degrees between upright and flat
  • Pad Diameter
    10 in. (254 mm)
  • Pad Quantity
    4
  • Pad Spread Size
    17 x 45-1/2 in. (433 x 1157 mm)
Product Overview
  • Load Movement: Power Tilt, 90 Degrees Between Upright and Flat
  • 500 Lbs. (225 kg) Lifting Capacity
  • Operates on 120V AC, 60 Hz, 10 AMP

Concave vacuum pads swivel to accommodate windshields and other curved materials in this CRL Wood's Powr-Grip® Windshield Power Tilter, originally designed for lifting bullet-proof glass. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.

Standard Pad Spread: 17" x 45-1/2" (433 x 1157 mm)

Number/Size of Pads: 4/10" (254 mm) Diameter

Lifting Capacity: 500 Lbs. (227 kg)

Unit Weight: 154 Lbs. (70 kg)

Standard Operating Power: 120V AC, 60 Hz, 10 AMP

Apply: Four sec. Release: Four sec. (approx.)

Load Movement: Power tilt, 90 degrees between upright and flat.

Time for 90 Degree Tilt: Seven seconds

Tilt Duty: 81 Tilts Per Hour

Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release

Available Options:
  • Vacuum Loss Warning Buzzer CAT. NO. E03VLW
  • Individual Pad Shutoffs CAT. NO. CM1C0WB
  • Voltage Adaptation CAT. NO. E06VA

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
