• Provides Effortless Power Tilting and Optimal Support
• 500 Lbs. (225 kg) Lifting Capacity
• Operates on 110 Volts AC

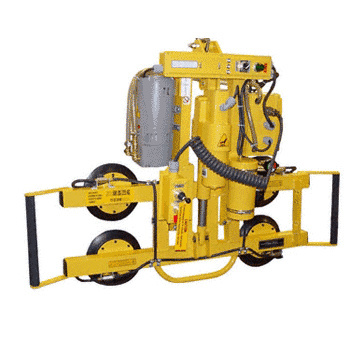

CRL Wood's Powr-Grip® Power Tilter 500 Series has fast apply and release times and effortless power tilt. This vacuum lifter is ideal for transferring glass or other non-porous materials between vertical storage and horizontal production machinery, as well as many other applications. For special sizes and capacities, please contact our Glass and Glazing Technical Sales Department.


Standard Vacuum Pad Spread:
20-1/2" x 37-1/2" (521 x 953 mm)

Number/Size of Vacuum Pads:
4/9" (229 mm) Diameter Vacuum Pads

Lifting Capacity:
500 Lbs. (227 kg) on smooth non-porous surfaces

Weight of Vacuum Lifter:
168 Lbs. (76 kg)

Standard Operating Power:
120V AC, 60 Hz, 10 Amp

Apply: 1 sec. Release: 1 sec. (approx.)

Load Movement:
Power Tilt, 90 degrees between upright and flat

Time for 90 Degree Tilt:
6.5 seconds (approx.)

Tilt Duty:
81 Tilts Per Hour

Standard Features:
Removable Control Pendant
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter

Available Options:
Vacuum Loss Warning Buzzer CAT. NO. E03VLW
Individual Vacuum pad Shutoffs CAT. NO. CM1C0WB
Voltage Adaptation CAT. NO. E06VA
