• One 10" (254 mm) Diameter Lipped Vacuum Pad
• 150 Lbs. (68 kg) Lifting Capacity

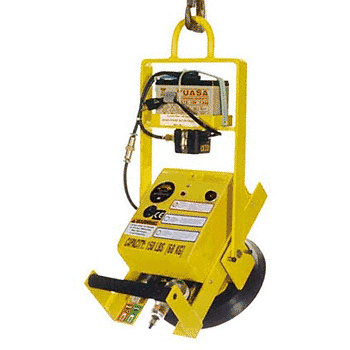

This CRL Wood's Powr-Grip® Manual Tilter 150 has a single vacuum pad for quick attachment and release. This Powr-Grip® Vacuum Lifter enables ergonomic handling of heavy loads by a single person. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.


Standard Vacuum Pad Spread:
11" x 11" (280 x 280 mm)

Number/Size of Pads:
1/10" (254 mm) Diameter Lipped Vacuum Pad

Lifting Capacity:
150 Lbs. (68 kg) (On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)

Weight of Vacuum Lifter:
36 Lbs. (17 kg)

Standard Operating Power:
12V DC, 10 AMP (Other voltages available)

Apply: 2 sec. Release: 3 sec. (approx.)

Load Movement:
Manual Tilt, 90 Degrees Between Upright and Flat

Standard Features:
On-Board Battery and Charger
Battery Energy Gauge
Low Vacuum Warning Light
Vacuum Gauge
Vacuum Line Filter
Vacuum Reserve Tank

Available Options:
175 Lbs. (79 kg) Flat Lift Model CAT. NO. FL1HV11DCS
Closed Cell Foam Pad Ring CAT. NO. FRHV11
Removable Control Pendant CAT. NO. E09RP
