• Makes it a One Person Job of Transferring Glass Between Upright and Flat
• Reduces the Risk of Glass Damage
• 1000 Lbs. (455 kg) Lifting Capacity

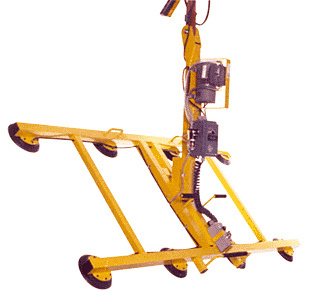

The CRL Wood's Powr-Grip® Manual Tilter 1000 is the most economical method of tilting Glass. The frame automatically locks into the upright position for transporting glass. Conveniently placed handle helps keep the operator in control of the load at all times. Only 4 seconds are required to apply full vacuum to the glass and 3 seconds to release. This Tilter also features 90 degree tilt, a high-flow vacuum system, and detachable control pendant to improve safety and ease of use when handling sheet materials. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.


Standard Pad Spread:
49-1/4" x 99-1/4" (1.25 x 2.52 m)

Number/Size of Pads:
8/9" (229 mm) Diameter

Lifting Capacity: 1,000 Lbs. (455 kg)

Unit Weight: 170 Lbs. (78 kg)

Standard Operating Power:
120V AC, 60 Hz, 5 AMP

Apply: 4 sec. Release: 3 sec. (approx.)

Load Movement: Manual tilt, 90 degrees between upright and flat.

Standard Features:
Green Lift Light
Removable Control Pendant
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-Lock Electrical Plug
Multiple Handles for Easy Load Positioning
Blow-Off for Quick Release

Alternative Power Systems:

DC Power System CAT. NO. MT89DCS

Air (Venturi) Power System CAT. NO. MT89A1RS

Available Options:

Vacuum Loss Warning Buzzer CAT. NO. E03VLW

12V DC Vacuum Back-up System CAT. NO. E01DCB

Individual Pad Shutoffs CAT. NO. CM1C0WB

Movable Pad Mounts CAT. NO. CM2SCM

Voltage Adaptation CAT. NO. E06VA
