• Reaches Into the Glass Case to Lift Large Lites
• Fast Vacuum Cup Attachment and Release
• Speeds Production Lines
• Load Capacity - 750 Lbs. (340 Kg)

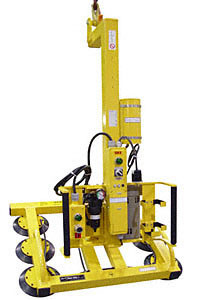

This CRL Wood's Manual Tilting C-Frame has a unique shape that enables the operator to easily remove glass from shipping crates with the crate's face removed. After the glass is removed, it can be manually tilted 90 degrees from vertical to flat. Its rugged construction is designed for long service life on high volume production lines.


Standard Vacuum Pad Spread:
29-1/4" x 39-1/4" (743 x 997 mm)

Number / Size of Vacuum Pads:
6 / 9" (229 mm) diameter vacuum pads

Load Capacity:
750 lbs (340 kg)

Standard Operating Power:
120 volts AC, 50/60 hertz, 5 amps

Apply / Release Times:
2 seconds / 2 seconds (approx)

Load Movement:
Manual tilt, 90° between upright and flat, with hydraulic damping

Throat Depth:
15-1/4" (387 mm)

Standard Features:
Green lift light
Vacuum gauge
Vacuum reserve tank
Vacuum line filter
Spring-mounted vacuum pads
Industrial grade switches
Twist-lock electrical plug
Blow-off for quick release

Alternative Power Systems:
DC power system
Air (venturi) power system
(Specifications may not be as listed above. Please contact us for more information.)

Available Options:
Movable control pendant
Vacuum loss warning buzzer
12-Volt/DC vacuum back-up system
Individual vacuum pad shutoffs
Telescoping vacuum pad arms
Movable vacuum pad mounts
Voltage adaptation

Design Standards:
ASME B30.20-2006
(BTH-1 Design Category "B", Service Class "0")
