• Reaches Into the Glass Case to Lift Large Lites
• Fast Vacuum Cup Attachment and Release
• Speeds Production Lines
• Load Capacity - 750 Lbs. (340 Kg)

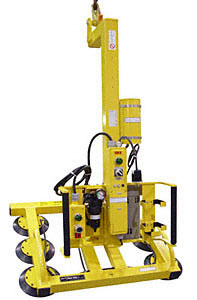

This CRL Wood's Manual Tilting C-Frame has a unique shape that enables the operator to easily remove glass from shipping crates with the crate's face removed. After the glass is removed, it can be manually tilted 90º from vertical to flat. Its rugged construction is designed for long service life on high volume production lines.


Standard Pad Spread: 29-1/4" x 39-1/4" (743 x 997 mm)

Number/Size of Pads:
CAT. NO. CFMT49ACS: 4/9" (229 mm) Diameter
CAT. NO. CFMT69ACS: 6/9" (229 mm) Diameter

Lifting Capacity:
CAT. NO. CFMT49ACS: 500 Lbs. (227 kg)
CAT. NO. CFMT69ACS: 750 Lbs. (340 kg)

Standard Operating Power: 120V AC, 50/60 Hz, 5 AMP (other voltages available)

Apply/Release:
CAT. NO. CFMT49ACS: 1/1 sec. (approx)
CAT. NO. CFMT69ACS: 2/2 sec. (approx)

Load Movement: Manual tilt, 90º between upright and flat, with hydraulic damping.

Standard Throat Depth: 15-1/4" (388 mm)

Standard Features:
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Green Lift Light
Spring-Mounted Pads
Industrial Grade Switches
Twist-lock Electrical Plug
Blow-off for Quick Release

Available Options

DC Power Systems: CAT. NOS. CFMT49DCS or CFMT69DCS

Air (Venturi) Power Systems: CAT. NOS. CFMT49A1RS or CFMT69A1RS
