• Eight 10" (245 mm) Diameter Lipped Vacuum Pads
• 1000 Lbs. (455 kg) Lifting Capacity
• Load Movement: Power Rotation, 360 Degree Edgewise, w/ Adjustable Speed Control
• Operates on 110 Volts AC

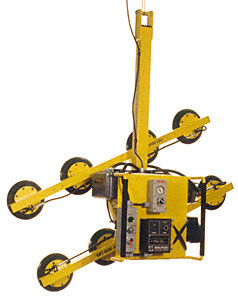

This CRL Wood's Powr-Grip® Power Rotator 1000 combines powered 360 degree rotation, adjustable rotation speed, and fast attach/release times, making it ideal for high-output production lines. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.


NOTE: For special sizes and capacities, please contact our Glass and Glazing Technical Sales.

Standard Pad Spread:
CAT. NO. PR89ACS: 9" x 59" (740 mm x 1.50 m)
CAT. NO. PR8HV11ACS: 31" x 61" (788 mm x 1.55 m)

Number/Size of Pads:
CAT. NO. PR89ACS: 8/9" (229 mm) Diameter
CAT. NO. PR8HV11ACS: 8/10" (254 mm) Diameter Lipped

Lifting Capacity: 1,000 Lbs. (455 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)

Average Unit Weight: 496 Lbs. (225 kg)

Standard Operating Power:
120V AC, 60 Hz, 15 AMP

Apply/Release: 4/3 sec. (approx.)

Load Movement:
Power rotation, 360 degree edgewise, with adjustable speed control.

Maximum Rotation Speed:
Full turn 7 sec. (approx.)

Minimum Rotation Speed:
Full turn 30 sec. (approx.)

Standard Features:
Green Lift Light
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-Lock Electrical Plug
Blow-off for Quick Release

Available Options:
Voltage Adaptation: CAT. NO. E06VA
Removable Control Pendant: CAT. NO. E09RP
Vacuum Loss Warning Buzzer: CAT. NO. E03VLW
12V DC Vacuum Back-up System: CAT. NO. E01DCB
Interchangeable Pad Frames: CAT. NO. F11F0
Removable Outer Pad Arms: CAT. NO. CF2EA0
Individual Pad Shutoffs: CAT. NO. CM1C0WB C-Frame Lift Bar: CAT. NO. LB3CFL
Closed Cell Foam Pad Rings: CAT. NO. FRHV11 (available on CAT. NO. PR8HV11ACS only).
