- Economical Lifter for Production Line Use
- 360 Degree Continuous Edgewise Rotation
- Excellent Choice for Edger and Beveller Users

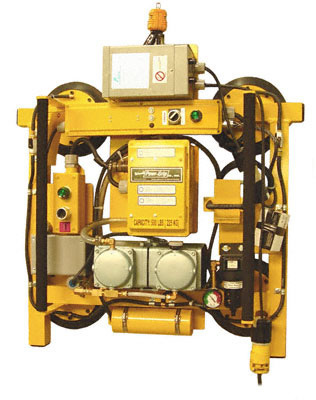

This Wood's 500 Pound Powr-Grip® Manual Rotator is a great choice when you need maximum ease in the manipulation of heavy loads. It combines manual 360 degree rotation, and fast attach/release times, making them ideal on high-output production lines.
NOTE: For special sizes and capacities please contact our
Glass and Glazing Technical Sales.
Standard Pad Spread: CAT. NO. MR49AC: 24" x 30" (610 x 762 mm)
CAT. NO. MR411LAC: 26" x 32" (661 x 813 mm)
CAT. NO. MR4HV11AC: 25" x 31" (636 x 788 mm)
Number / Size of Pads: CAT. NO. MR49AC: 4/9" (229 mm) Diameter
CAT. NO. MR411LAC: 4/11" (280 mm) Diameter Lipped
CAT. NO. MR4HV11AC: 4/10" (254 mm) Diameter Lipped
Lifting Capacity: CAT. NO. MR49AC: 500 lbs. (227 kg)
CAT. NO. MR411LAC: 700 lbs. (318 kg)
CAT. NO. MR4HV11AC: 600 lbs. (272 kg)
(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)
Average Unit Weight: 61 lbs. (28 kg)
Standard Operating Power: 120V AC, 60 Hz, 5 AMP (100V AC, 60 Hz, 3 AMP and 240V AC, 60 Hz, 2 AMP also available)
Apply / Release Times: CAT. NO. MR49AC: 1 sec./1 sec. (approximately)
CAT. NO. MR411LAC: 2 sec./2 sec. (approximately)
Load Movement: Manual rotation, 360 degrees edgewise with automatic locking at the quarter points.
Standard Features: Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Twist-lock Electrical Plug
Blow-off for Quick Release
Available Options:Air (Venturi) Power System
CAT. NO. MR49A1R CAT. NO. MR411LA1RCAT. NO. MR4HV11A1R
Individual Pad Shutoffs CAT. NO. CM1C0WB
Green Lift Light CAT. NO. E02GSL
Vacuum Loss Warning Buzzer CAT. NO. E03VLW
Voltage Adaptation CAT. NO. E06VA
Closed Cell Foam Pad Rings CAT. NO. FRHV11 (Available on CAT. NO. MR4HV11AC only)
Linear Pad Frame CAT. NO. CF8LF0
