• 3000 Lbs. (1360 kg) Lifting Capacity
• Twelve 10" (254 mm) Diameter Lipped Pads

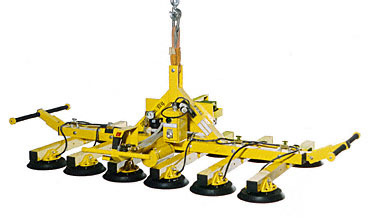

CRL Wood's Powr-Grip® Air Powered Flat Lifter 3000 Series features an astounding 3000 pound (1360 kg) load capacity, making it the heavy-weight champ in Wood's Flat Lifter Series for materials handling. For special sizes and capacities, please contact our Glass and Glazing Technical Sales.


Standard Vacuum Pad Spread:
23" x 71" (584 mm x 1.80 m) (minimum)
43" x 71" (1.09 x 1.80 m) (maximum)

Number/Size of Vacuum Pads:
12/10" (254 mm) diameter lipped vacuum pads

Load Capacity: 3000 lbs. (1360 kg)

Standard Operating Power:
120 volts AC, 60 Hertz, 11 Amps (FL12HV11ACS)

Alternative Power Systems:
DC power system (FL12HV11DCS)
Air (venturi) power system (FL12HV11A1RS)

Unit Weight: 195 lbs. (89 kg)

Apply: 4 sec. Release: 4 sec. (approx)

Load Movement:
Flat to flat

Standard Features:
Movable Vacuum Pad Mounts
Parking Stands/Control Handles
Twist-lock Electrical Plug
Spring-mounted Vacuum Pads
Green Lift Light
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge
Blow-off for Quick Release
