• Five 10" (254 mm) Diameter Lipped Vacuum Pads
• 1500 lbs. (680 kg) Lifting Capacity

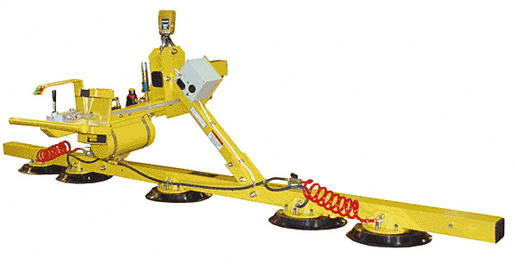

This CRL Wood's Powr-Grip® AC Powered 1500 Series FLEX Flat Lifter from CRL Wood's features a single beam with 5 movable vacuum pads and your choice of AC, DC or compressed air power. For special sizes and capacities, please contact our CRL Technical Sales.


Standard Variable Vacuum Pad Spread:
Min: 11" x 63" (279 mm x 1.60 m)
Max: 11" x 89" (279 mm x 2.26 m)

Number/Size of Vacuum Pads:
5/10" (254 mm) Diameter Lipped Vacuum Pads

Lifting Capacity: 1500 pounds (680 kg)

Weight of Vacuum Lifter:
89 lbs. (41 kg) with Air Power System (approx.)
129 lbs. (59 kg) with AC Power System (approx.)
177 lbs. (81 kg) with DC Power System (approx.)

Load Movement: Flat to Flat

Standard Features:
Movable Vacuum Pad Mounts
Spring-Mounted Vacuum Pads
Vacuum Reserve Tank
Vacuum Line Filter
Vacuum Gauge

Available Power Systems:

Air Power Systems (Cat. No. FLEX5HV11A1R):
Standard Operating Power: Compressed Air, 5 SCFM (142 liters/min) @ 80-150 psi (550-1035 kPa)
Vacuum Pump: Single-stage venturi type, 3 SCFM (85 liters/min) nominal airflow
Apply/Release Times: 4 seconds/2 seconds (approximate)
Blow-off for quick release

Optional High-Flow Power System
Standard Operating Power: Compressed Air, 8 SCFM (227 liters/min) @ 80-150 psi (550-1035 kPa)
Vacuum Pump: Single-stage venturi type, 4 SCFM (113 liters/min) nominal airflow
Apply/Release Times: 2 seconds/2 seconds (approximate)
Blow-off for quick release

AC Power System (Cat. No. FLEX5HV11AC):
Standard Operating Power: 120 volts AC, 50/60 hertz, 6 amps
(240 volts AC, 50/60 hertz, 3 amps also available)
Vacuum Pump: Rotary vane type, 4 SCFM (113 liters/min) nominal airflow
Apply/Release Times: 2 seconds/2 seconds (approximate)
Green lift light
Twist-lock electrical plug
Blow-off for quick release

DC Power System (Cat. No. FLEX5HV11DC):
Standard Operating Power: 12 volts DC, 21 amps
Vacuum Pump: Diaphragm type, 3 SCFM (85 liters/min) nominal airflow
Apply/Release Times: 4 seconds/4 seconds (approximate)
On-board battery and charger
Battery energy gauge
Low vacuum warning light
Blow-off for quick release
