• Used in Conjunction with Wood's Powr-Grip® P1-DC, P2-DC and MRTALP Series Lifters
• Powr-Grip's Channel Lifters Can Also be Inverted on the Counterbalancer for Reverse-Angle Installations
• Includes Radio Remote Controls
• Unit Also Available for Weekly Rental

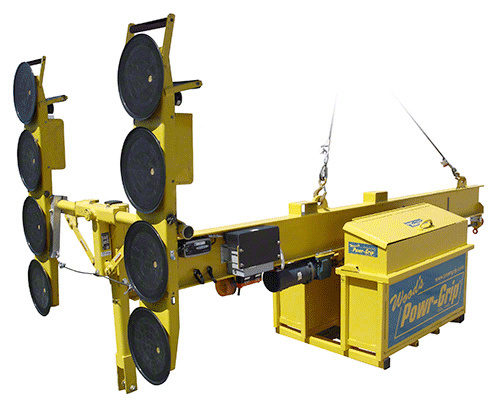

The CB2DCS Counterbalance Lifter was developed by Wood's Powr-Grip for use with a crane or other hoisting equipment, to lift and position windows under gables, overhangs or similar obstructions, by extending the load away from lift slings. This lifter's unique design features a DC-powered counterbalance, which moves on demand along a rugged I-beam to keep the lifter balanced, whether loaded or unloaded.

The Counterbalance Lifter comes with radio remote controls, to adjust the counterweight position during multi-story window installations, as well as onboard controls for use on the ground or in a cherry picker. A specialized fixed mount enables the CB2DCS to be used in conjunction with Powr-Grip's P1-DC, P2-DC and MRTALP Series Vacuum Lifters, while a universal hook mount accommodates all other kinds of vacuum lifters and end effectors. Powr-Grip's Channel Lifters can also be inverted on the Counterbalance Lifter for reverse-angle installations, such as those in airport control towers. In short, the CB2DCS Counterbalance Lifter represents a dramatic improvement in safety, versatility, and functionality over other available designs.

Reach:
Minimum: 57-3/4" (1.47 m)
Maximum: 69-1/2" (1.77 m)

Overall Length: 148-1/4" (3.77 m) Does not include load or optional vacuum lifter.

Maximum Load Capacity: 1,600 lbs. (725 kg) Including weight of optional vacuum lifter.

Unit Weight: 975 lbs. (443 kg) Does not include user-supplied ballast material.
