• Four 11" (280 mm) Diameter Lipped Vacuum Pads
• 700 Lbs. (320 kg) Lifting Capacity
• Load Movement: Power Rotation, 90 Degree Edgewise

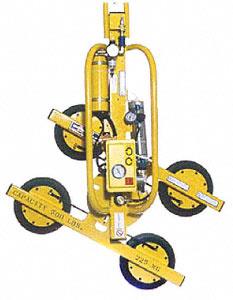

This CRL Wood's Powr-Grip® Air Powered 700 Series Rotator can complete powered 90 degree rotations, in approximately four seconds, making it ideal for high-output production lines. For special sizes, capacities, and additional information please contact Glass and Glazing Technical Sales.


Standard Pad Spread:
CAT. NO. PR49A1RS: 23-1/2" x 29-1/2" (597 x 745 mm)
CAT. NO. PR4HV11A1RS: 25" x 31" (636 x 788 mm)
CAT. NO. PR411LA1RS: 26" x 32" (661 x 813 mm)

Number/Size of Pads:
CAT. NO. PR49A1RS: 4/9" (229 mm) Diameter
CAT. NO. PR4HV11A1RS: 4/10" (254 mm) Diameter Lipped
CAT. NO. PR411LA1RS: 4/11" (280 mm) Diameter Lipped

Lifting Capacity:
CAT. NO. PR49A1RS: 500 Lbs. (225 kg)
CAT. NO. PR4HV11A1RS: 600 Lbs. (270 kg)
CAT. NO. PR411LA1RS: 700 Lbs. (320 kg)(On smooth, non-porous surfaces. Please contact us for recommendations on other surfaces.)

Average Unit Weight: 75 Lbs. (34 kg)

Standard Operating Power: Compressed Air, 4.5 SCFM (127 liters/minute) @ 80 psi (552 kPa)

Apply: 3 sec. Release: 3 sec. (approx.)

Load Movement: Power rotation, 90 degree edgewise

Time for 90 Degree Rotation: 4 sec. (approx.)

Rotation Duty: Continuous

Standard Features:
Vacuum Gauge
Vacuum Reserve Tank
Vacuum Line Filter
Spring-Mounted Pads
Blow-off for Quick Release
Adjustable-Position Lift Spool

Available Options:

Vacuum Loss Warning Buzzer
CAT. NO. E03VLW

Individual Pad Shutoffs
CAT. NO. CM1C0WB

Closed Cell Foam Vacuum Pad Rings
CAT. NO. FRHV11 (Available on CAT. NO. PR4HV11A1RS only)

Linear Pad Frame
CAT. NO. CF8LF0
