CRL Thick Glass Cut Opening Tapper

Item #: TP710
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 2.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Thick Glass Cut Opening Tapper
×
CRL Thick Glass Cut Opening Tapper
Quantity Standard Price Sale Price Your Price
CRL Thick Glass Cut Opening Tapper Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 6
Dallas, Texas 5/6/2025
Chicago (Elgin), Illinois 5/9/2025
San Francisco/Oakland (Union City), California 5/8/2025
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 5/6/2025
Boston (Taunton), Massachusetts 5/6/2025
Orlando, Florida 5/13/2025
Denver, Colorado 5/6/2025
Seattle (Kent), Washington 5/13/2025
Cleveland (Solon), Ohio 5/12/2025
Philadelphia Area (Moorestown, New Jersey) 5/9/2025
Phoenix, Arizona 5/8/2025
Las Vegas, Nevada 5/9/2025
Houston, Texas 5/6/2025
Miami, Florida 5/14/2025
San Diego, California 5/7/2025
Carolinas and Virginia, South Carolina 5/12/2025
Product Details
  • Brand
    CRL
  • Glazing Thickness
    Up To 3/4
  • Type
    Machine
  • Wrist Circumference
    Up To 3/4 in. (Up To 19 mm)
Product Overview
  • One Shot Starts Your Run
  • Powerful and Accurate
  • For Glass Up to 3/4" (19 mm) Thick
  • Designed to open scored line by applying an impact and split glass

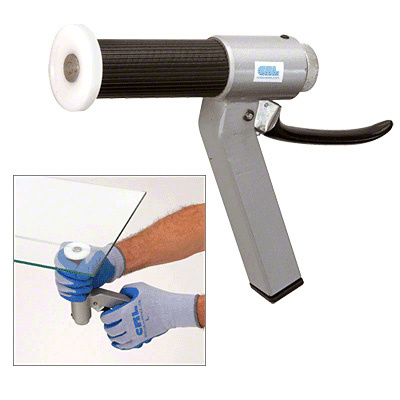

The CRL Thick Glass Cut Opening Tapper operates on a spring driven bolt principle. This unique glass working tool opens and runs score lines in glass from 3/8" to 3/4" (10 to 19 mm) thick. It features an industrial steel body that has a chemically applied nickel coating. This finish helps to preserve and protect it from the day to day abuse a tool of this type can be subjected to. The internal spring mechanism adjusts to regulate the tapping force from very light for thinner glass to a powerful punch for thick plate glass up to 3/4" (19 mm). No more need for using a tapping ball or small ball pein hammer; both of which can be inaccurate and can break or mar your glass. From the first time you try this heavy-duty tool, you can tell it's a high quality product.

Application :
  • First score the glass by an appropriate glass wheel, depending on glass thickness
  • Place the tool at the bottom, and center to the scored line
  • Pull the trigger, steel knob will hit the glass under the scored line
  • Scored line will open, continue with same action until all through line is opened

  • Product Warning:

    Always wear the proper safety gear including eye, hand, wrist, arm and foot protection when using this tool. The glass strip being separated should be properly supported or be held by a co-worker to avoid injury by falling glass.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
