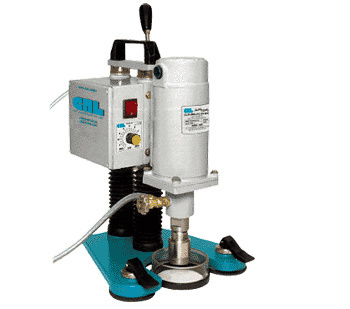

CRL 230V AC Production Diamond Glass Drilling Machine

 Discontinued item. All sales are final.
No longer available.
Item #: AMZ1AU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 230V AC Production Diamond Glass Drilling Machine
×
CRL 230V AC Production Diamond Glass Drilling Machine
Quantity Standard Price Sale Price Your Price
CRL 230V AC Production Diamond Glass Drilling Machine Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California Ask Us 800.421.6144
Dallas, Texas Ask Us 800.421.6144
Orlando, Florida Ask Us 800.421.6144
Seattle (Kent), Washington Ask Us 800.421.6144
Houston, Texas Ask Us 800.421.6144
Carolinas and Virginia, South Carolina Ask Us 800.421.6144
Product details
  • Brand
    CRL
  • Drill Hole
    1/8 in. To 3/8 in. (3 mm To 102 mm)
  • Speed
    Variable
  • Voltage
    230V
  • Works On
    Belgian Thread Diamond Drills
Product Overview
  • Precise Twin Post Design with Built-in Water Coolant Chuck Drills Faster and More Precisely Than Any Other Portable Drilling Machine
  • Accepts 1/8" to 4" (3 to 102 mm) Belgian Thread Diamond Drills
  • Variable Speed Control, High Torque DC Motor; Built-in Coolant Chuck; Locking Vacuum Cup Base
  • Operates on 230 Volts AC - Australian Plug

The CRL AMZ1AU 230V AC Production Diamond Drilling Machine drills 3 to 102 mm (1/8" to 4") holes faster and more precisely than any other portable glass drilling machine. In comparison to other machines on the market, drilling a 50.8 mm (2") hole in 6 mm (1/4") mirror can be done in less than ten seconds while using a properly dressed drill bit (tests done under controlled conditions).

It ships ready for use with a grounded plug for use with a Ground Fault Circuit Interrupt Device, such as our Cat. No. GF1. It is also loaded with popular features, and durable enough to give you years of dependable service. Make the move up from steel and brass tube drills, and their messy silicon carbide slurry, to our technically advanced Belgian Mount Multi-Layer Metal Bond Drills.

When purchasing the Drill Machine you should also purchase a Sharpening Stone to dress your Metal Bond Diamond Drills. The stone should be wider than the diameter of the drill being sharpened.NOTE: The AMZ1 Drill needs to be received at our Los Angeles Headquarters (at the customer's expense) before any replacement parts will be distributed. CRL Manufacturing will evaluate the drill at no charge to the customer. This is necessary to assure the proper replacement part(s) are selected due to advanced modifications to the machine over the years. After evaluation the correct part(s) will be identified and the part(s) and drill can be returned via the local service center for assembly by the customer. A price quote is also available for assembly by CRL Manufacturing.

FEATURES:
  • Advanced electric circuitry.
  • A powerful DC motor with a variable electric speed control that provides full torque at all speeds ranging from 0 to 2900 RPM.
  • Twin vertical guide posts for precise drilling.
  • A dual locking vacuum cup base keeps the machine steady while drilling.

    STANDARD ACCESSORIES:
  • 3.6 m (12') Heavy-Duty Power Cord
  • Externally Serviceable Motor, Brushes and Fuse
  • Coolant Retaining Ring
  • Coolant Chuck with Supply Hose
  • Built-in Handle for Easy Carrying
  • Service Wrenches
  • Complete Operation Manual

    The Drilling Machine is also loaded with popular features, and durable enough to give you years of dependable service. Make the move up from steel and brass tube drills, and their messy silicon carbide slurry, to the technically advanced Belgian Mount Multi-Layer Metal Bond Drills.

    Product Warning:

    Always use a Ground Fault Circuit Interrupt, such as Cat. No. GF1, when operating wet glass working machinery to avoid electric shock.
