ASSA ABLOY Dark Bronze Automatic Swing Door Operator

Finish/Color : Dark Bronze Anodized
Dark Bronze Anodized
Item #: SW60DU
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
ASSA ABLOY Dark Bronze Automatic Swing Door Operator
ASSA ABLOY Dark Bronze Automatic Swing Door Operator
Quantity Standard Price Sale Price Your Price
ASSA ABLOY Dark Bronze Automatic Swing Door Operator Stock
Los Angeles, California 4
Dallas, Texas 7/23/2024
Chicago (Elgin), Illinois 7/23/2024
San Francisco/Oakland (Union City), California 7/25/2024
Atlanta, Georgia 7/23/2024
New York Area (Secaucus, New Jersey) 7/23/2024
Boston (Taunton), Massachusetts 7/29/2024
Orlando, Florida 7/30/2024
Denver, Colorado 7/23/2024
Seattle (Kent), Washington 7/23/2024
Cleveland (Solon), Ohio 7/23/2024
Philadelphia Area (Moorestown, New Jersey) 7/26/2024
Phoenix, Arizona 7/25/2024
Las Vegas, Nevada 7/25/2024
Houston, Texas 7/23/2024
Miami, Florida 7/30/2024
San Diego, California 7/22/2024
Carolinas and Virginia, South Carolina 7/30/2024
Product details
  • Brand
  • Certification
    ANSI A156.19
  • Depth
    2-3/8 in. (60.3 mm)
  • Door Weight
    80 To 200 lbs. (36 To 90 kg)
  • Door Width
    30 To 48 in. (762 To 1219 mm)
  • Finish/Color:
    Dark Bronze
  • Height
    1-7/8 in. (48 mm)
  • Length
    39-1/2 in. (1003 mm)
  • Mounting Type
    Surface Mount
  • Series
  • UL Listed
Product Overview
  • Sleek Design for Limited Overhead Space
  • Easy to Install on Existing Doors

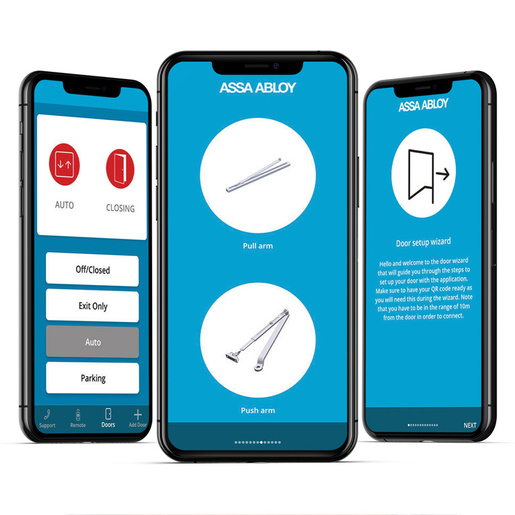

  • Door Functions Can be Controlled by App

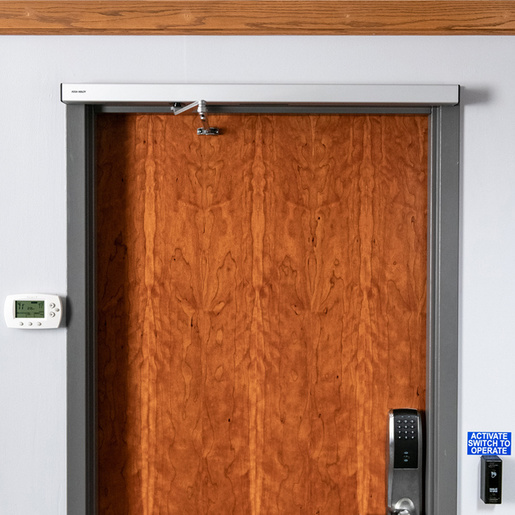

Meet the newest innovation in door operator technology, bridging the gap between manual an automatic doors. The ASSA ABLOY SW60 combines touchfree solutions, smart access controls and command responsiveness with sleek, appeal, slim design and the ability to convert virtually any interior door into a germ-free entrance.

The SW60 features a low profile automatic door operator with impressive features such as free swing, push & go and ratchet function. The operator can be integrated with electric strikes, door mounted presence sensors (approach side only) or touchless activation units.

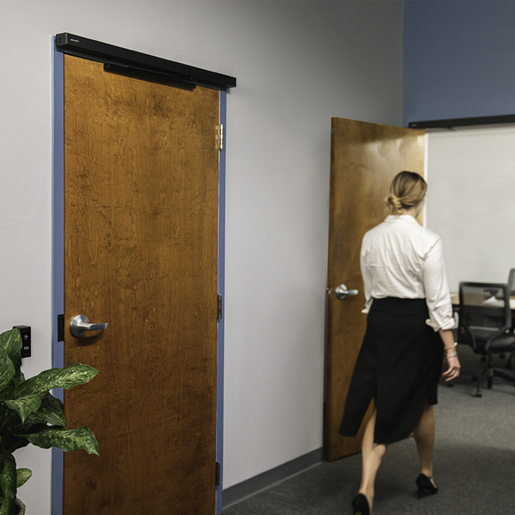

The ASSA ABLOY SW60’s sleek design is perfect for applications where there is little overhead space or where aesthetics is of utmost importance.  Recommended for indoor applications for single doors such as restrooms, offices, senior care or public buildings.

Operator Features and Performance:
  • Operator: electro-mechanical, non-handed operator
  • ANSI Compliance: Low energy (ANSI A156.19)
  • UL approved - UL325 UL/CUL & UL Listed Fire Door Operator - UL10C
  • Door Weight: up to 200 pounds per operator
  • Door Size: up to 48”
  • Manual Push Force: adjustable from 5 lbf – 15 lbf
  • Hold Open Time: adjustable from 2 seconds to 6 hours
  • Ratchet Function
  • Electric strike integration (no external relays required)
  • Low voltage operator that is powered via an external 24vdc power supply.

  • Aesthetically pleasing, low profile appearance: 1-7/8” high by 2-3/8” deep
  • 39-1/2” header
  • Finishes: Clear Anodized or Dark Bronze
  • Blends in with door frames
  • Can fit in spaces where overhead space is limited
