CRL Brushed Stainless Sidelite Mounted Transom Curved Patch

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: CPF40BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 3.5 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless Sidelite Mounted Transom Curved Patch
×
CRL Brushed Stainless Sidelite Mounted Transom Curved Patch
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless Sidelite Mounted Transom Curved Patch Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 9
Dallas, Texas 7/1/2025
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 7/3/2025
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 7/1/2025
Boston (Taunton), Massachusetts 7/1/2025
Orlando, Florida 7/8/2025
Denver, Colorado 7/1/2025
Seattle (Kent), Washington 7/1/2025
Cleveland (Solon), Ohio 7/2/2025
Philadelphia Area (Moorestown, New Jersey) 7/4/2025
Phoenix, Arizona 7/3/2025
Las Vegas, Nevada 7/4/2025
Houston, Texas 7/1/2025
Miami, Florida 1
San Diego, California 6/30/2025
Long Island In Other Service Center
Carolinas and Virginia, South Carolina 7/7/2025
Product Details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Insert Type
    1NT300
  • Mounting Type
    Sidelite
  • Series
    Curved
  • With Insert
    Yes
Product Overview
  • Works with 2-11/16" (68 mm) Pivot Setback Door Patch Fittings
  • For 3/8" or 1/2" (10 or 12 mm) Glass
  • Use Monolithic Tempered Glass

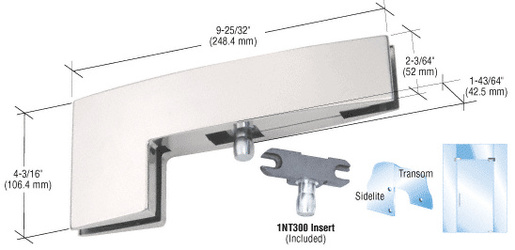

The Sidelite Mounted Transom Curved Patch is used to support a transom from a sidelite glass panel. It comes with a 1NT300 Top Insert for door mounting. On the non-hinged side the Insert can be removed, allowing for a double swinging door. A 1NT306 Transom Patch Door Stop Insert can be used to create a one way door.

GLASS FABRICATION REQUIRED:
Three 3/4" (19 mm) Diameter
Holes and Corner Notch

COMES WITH:
Template and Instructions

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
