CRL Brass LH European Bottom Door Patch Fitting

 Limited stock available. This item will be discontinued. All sales are final.
Item #: PH11ELBR
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brass LH European Bottom Door Patch Fitting
×
CRL Brass LH European Bottom Door Patch Fitting
Quantity Standard Price Sale Price Your Price
CRL Brass LH European Bottom Door Patch Fitting Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 55
Dallas, Texas 12/20/2024
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 12/19/2024
Atlanta, Georgia 12/23/2024
New York Area (Secaucus, New Jersey) 12/23/2024
Boston (Taunton), Massachusetts 12/23/2024
Orlando, Florida 1
Denver, Colorado 12/24/2024
Seattle (Kent), Washington 12/24/2024
Cleveland (Solon), Ohio 12/23/2024
Philadelphia Area (Moorestown, New Jersey) 12/20/2024
Phoenix, Arizona 12/19/2024
Las Vegas, Nevada 12/20/2024
Houston, Texas 12/20/2024
Miami, Florida 12/25/2024
San Diego, California 12/18/2024
Carolinas and Virginia, South Carolina 12/24/2024
Product details
  • Finish/Color:
    Polished Brass
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Handing
    Left Hand
  • Insert Type
    1NT305L
  • Pivot Setback
    2-9/16
  • Series
    European
  • Type
    Bottom
  • With Insert
    Yes
Product Overview
  • For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • 2-9/16" (65 mm) Pivot Setback
  • For Herculite™+ Style Doors

For Use With:
  • 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Glass Fabrication Required: One 3/4" (19 mm) Diameter
  • Hole and Corner Notch
  • Template is available at crlaurence.com

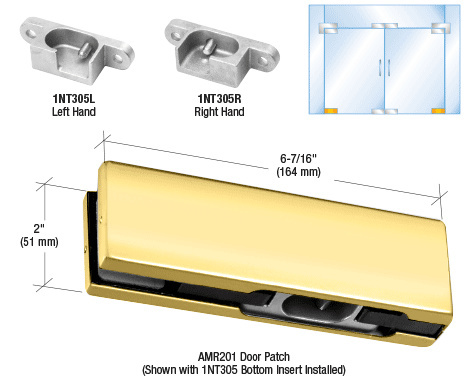

    Includes:
  • 1 Each AMR201 Door Patch
  • 1 Each 1NT305L and 1NT305R Bottom Door Patch Insert
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) Glass

    Product Warning:

    NOTE: For maximum door size when using this product, CRL follows GANA Guidelines.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Brass Finish Advisory:
    Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
