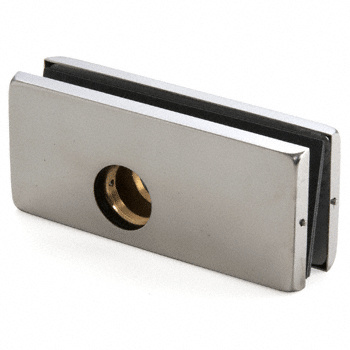

Dormakaba® Polished Stainless AR2034 Series Patch Lock for 3/4" Glass

Finish/Color : Polished Stainless Steel
Brushed Stainless Steel
Polished Stainless Steel
Item #: AR2034PS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 3.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Dormakaba® Polished Stainless AR2034 Series Patch Lock for 3/4" Glass
×
Dormakaba® Polished Stainless AR2034 Series Patch Lock for 3/4" Glass
Quantity Standard Price Sale Price Your Price
Dormakaba® Polished Stainless AR2034 Series Patch Lock for 3/4" Glass Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Related Products
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Finish/Color:
    Polished Stainless Steel
  • Glazing Thickness
    3/4 in. (19 mm)
Back to Top
Product Overview
  • High Density Cast Body with Lock Mechanism
  • Gaskets for Use with 3/4" (19 mm) Glass
  • Two Architectural Finishes

The Dormakaba® American Style Patch Lock is a heavy-duty version of the AMR215 lock for 3/4" (19 mm) thick glass. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. Optional keepers available to accommodate most installations.


GLASS FABRICATION REQUIRED:
Top or Bottom Mount: One Corner Notch

COMES WITH: Template and Instructions

DOES NOT INCLUDE: Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)

DOUBLE DOOR APPLICATION: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.


Product Warning:

Cylinders and/or thumbturns and keepers are optional and not included with lock body.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Back to Top
Technical References & CAD Drawings
Templates
AR2034 Glass Fabrication Template.pdf
Cleaning & Maintenance
CRL Stainless Steel Disclaimer
