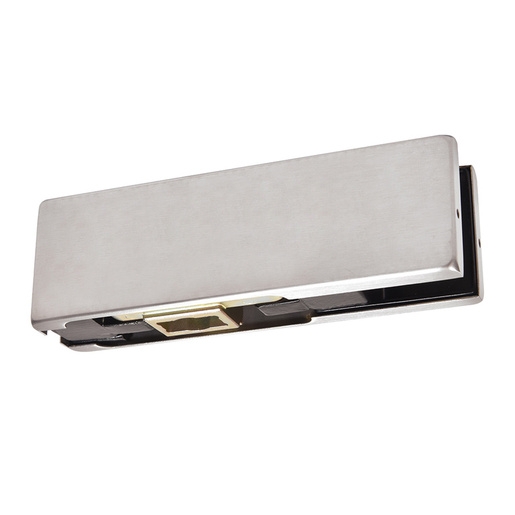

Dormakaba® Brushed Stainless AR2034 Series Patch Lock for 3/4" Glass

Finish/Color : Brushed Stainless Steel
Brushed Stainless Steel
Item #: AR2034BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 3.2 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
Dormakaba® Brushed Stainless AR2034 Series Patch Lock for 3/4" Glass
×
Dormakaba® Brushed Stainless AR2034 Series Patch Lock for 3/4" Glass
Quantity Standard Price Sale Price Your Price
Dormakaba® Brushed Stainless AR2034 Series Patch Lock for 3/4" Glass Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 10
Dallas, Texas 7/29/2025
Chicago (Elgin), Illinois 7/29/2025
San Francisco/Oakland (Union City), California 7/24/2025
Atlanta, Georgia 7/28/2025
New York Area (Secaucus, New Jersey) 7/28/2025
Boston (Taunton), Massachusetts 7/28/2025
Orlando, Florida 7/29/2025
Denver, Colorado 7/29/2025
Seattle (Kent), Washington 7/29/2025
Cleveland (Solon), Ohio 7/30/2025
Philadelphia Area (Moorestown, New Jersey) 8/1/2025
Phoenix, Arizona 7/24/2025
Las Vegas, Nevada 7/25/2025
Houston, Texas 7/29/2025
Miami, Florida 7/30/2025
San Diego, California 7/28/2025
Long Island In Other Service Center
Carolinas and Virginia, South Carolina 7/28/2025
Product Details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/4 in. (19 mm)
Product Overview
  • High Density Cast Body with Lock Mechanism
  • Gaskets for Use with 3/4" (19 mm) Glass
  • Two Architectural Finishes

The Dormakaba® American Style Patch Lock is a heavy-duty version of the AMR215 lock for 3/4" (19 mm) thick glass. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. Optional keepers available to accommodate most installations.

GLASS FABRICATION REQUIRED:
Top or Bottom Mount: One Corner Notch

COMES WITH: Template and Instructions

DOES NOT INCLUDE: Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)

DOUBLE DOOR APPLICATION: For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.

Product Warning:

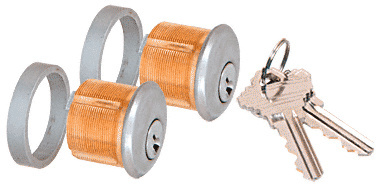

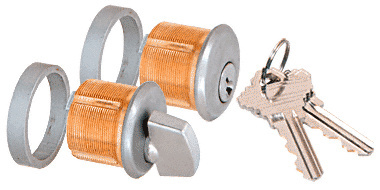

Cylinders and/or thumbturns and keepers are optional and not included with lock body. Works with DRA50 cylinder and/or DRA60 Thumbturn.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
Technical References & CAD Drawings
