CRL Satin Brass AMR215 Series Patch Lock

Finish/Color : Satin Brass
Satin Anodized
Polished Brass
Brushed Stainless Steel
Black Bronze Anodized
Matte Black
Polished Stainless Steel
Satin Brass
Item #: AMR215SB
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 2.0 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Brass AMR215 Series Patch Lock
×
CRL Satin Brass AMR215 Series Patch Lock
Quantity Standard Price Sale Price Your Price
CRL Satin Brass AMR215 Series Patch Lock Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 10
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Related Products
Product Details Product Overview Technical References & CAD Drawings

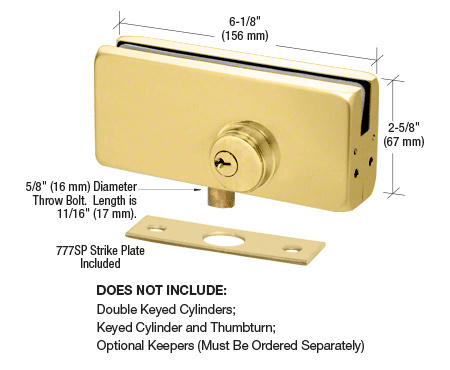

Product Details
  • Finish/Color:
    Satin Brass
  • Glazing Thickness
    3/8 in.,1/2 in. (10 mm,12 mm)
  • Height
    2-9/16 in. (65 mm)
  • Width
    6-1/8 in. (156 mm)
Back to Top
Product Overview
  • High Density Cast Body with Lock Mechanism
  • Gaskets for use with 3/8" or 1/2" (10 or 12 mm) Glass
  • Five Architectural Finishes

The American Style Patch Lock is a heavy-duty version of the AMR205 Lock. The taller profile housing provides additional security due to more glass being secured inside the lock housing. This lock can only be installed in top and bottom corner applications. It can be locked with either double keyed cylinders or a keyed cylinder/thumbturn which are ordered separately. A keeper is supplied with optional keepers available to accommodate most installations.


GLASS FABRICATION REQUIRED:
Top or Bottom Mount:
One 3/4" (19 mm) Diameter Hole and One Corner Notch

COMES WITH: Template and Instructions

DOES NOT INCLUDE:
Double Keyed Cylinders; Keyed Cylinder/Thumbturn; Optional Keepers (Must Be Ordered Separately)

DOUBLE DOOR APPLICATION:
For double door installations a Bottom Patch Lock is required on the inactive leaf to properly secure the pair of doors.


Product Warning:

Cylinders are optional and not included with lock body.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Back to Top
Technical References & CAD Drawings
Templates
AMR215 Template.dwg
AMR215 Template.pdf
Cleaning & Maintenance
Brass Finish Disclaimer
