CRL Brushed Stainless European Patch Door Kit for Double Doors for Use with Fixed Transom and One Sidelite - Without Lock

 Discontinued item. All sales are final.
No longer available.
Finish/Color : Brushed Stainless Steel
Satin Anodized
Polished Brass
Brushed Stainless Steel
Polished Stainless Steel
Satin Brass
Item #: PHE7BS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless European Patch Door Kit for Double Doors for Use with Fixed Transom and One Sidelite - Without Lock
×
CRL Brushed Stainless European Patch Door Kit for Double Doors for Use with Fixed Transom and One Sidelite - Without Lock
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless European Patch Door Kit for Double Doors for Use with Fixed Transom and One Sidelite - Without Lock Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles Ask Us 1.800.421.6144
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Valencia Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Configuration
    Pair With Transom-Sidelite
  • Door Type
    A Style Glass Door
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/8 in., 1/2 in. (10 mm, 12 mm)
  • Pivot Setback
    2-9/16
Back to Top
Product Overview
  • For 3/8" or 1/2" (10 or 12 mm) Tempered Glass
  • Five Architectural Finishes
  • Available With or Without Locks

CRL PHE7 European Double Door Kits come with all the hardware to complete a pair of free-swinging doors with fixed transom and sidelite, (except glass and additional supports for the fixed transom and sidelite). Pivot setback is 2-9/16" (65 mm). Floor closer with tapered spindle (ordered separately) may be used with this Kit.

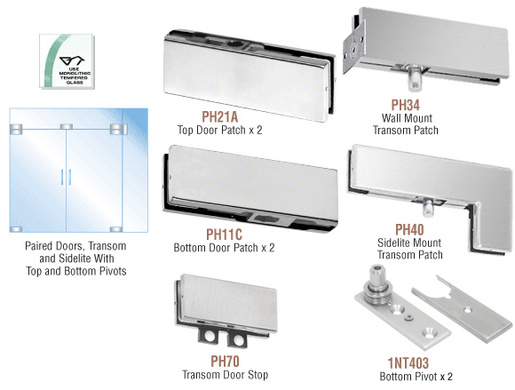

Kit Contains:
  • 1 - PH34 Wall Mount Transom Patch
  • 1 - PH40 Sidelite Mount Transom Patch
  • 2 - PH21A Top Door Patches
  • 2 - PH11C Bottom Door Patches
  • 1 - PH70 Transom Door Stop
  • 2 - 1NT403 Bottom Pivots
  • Gaskets for 3/8" or 1/2" (10 or 12 mm) tempered glass. (Holes and notches are required in the glass.)

    Kits with locks also come with two each Cat. No. EUR205 patch locks. Cylinders, thumbturns, and keepers are ordered separately.

    NOTE: For maximum door sizes when using this product, CRL follows GANA Guidelines.

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

    Stainless Steel Advisory:
    Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
    • Back to Top
    Technical References & CAD Drawings
    Cleaning & Maintenance
    CRL Stainless Steel Disclaimer
