CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length

Item #: NH2BSSL
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Stock Length

Shipping Weight : 9.9 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
×
CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length
Quantity Standard Price Sale Price Your Price
CRL Brushed Stainless Wide U-Channel with Top Load Roll-In Glazing Gasket for 3/8" and 1/2" Glass - 120" Length Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 1
Dallas, Texas 2
Chicago (Elgin), Illinois 270
San Francisco/Oakland (Union City), California 18
Atlanta, Georgia 1
New York Area (Secaucus, New Jersey) 16
Boston (Taunton), Massachusetts 3
Orlando, Florida 8
Denver, Colorado 1
Seattle (Kent), Washington 5
Cleveland (Solon), Ohio 1
Philadelphia Area (Moorestown, New Jersey) 3
Phoenix, Arizona 1
Las Vegas, Nevada 29
Houston, Texas 2
Miami, Florida 14
San Diego, California 3
Carolinas and Virginia, South Carolina 1
Product details
  • Finish/Color:
    Brushed Stainless Steel
  • Glazing Thickness
    3/8 in. or 1/2 in. (10 mm or 12 mm)
  • Height
    1-5/8 in. (41 mm)
  • Length
    120 in. (3048 mm)
  • Width
    1-7/8 in. (48 mm)
Product Overview
  • Channels for 3/8" or 1/2" (10 or 12 mm) and 5/8" or 3/4" (16 and 19 mm) Glass
  • Use Monolithic Tempered Glass
  • Matches the Width of Door and Sidelite Rails

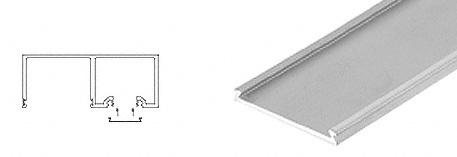

  • Accepts Roll-In Glazing Gasket, Top Pivot Block, and Snap-In Filler Strip
  • Ready-to-Ship Models From CRL Inventory
  • Available in Stock Lengths, Fabricated Headers, or Header with Side Pockets for 'Lift and Drop' Panel Installation

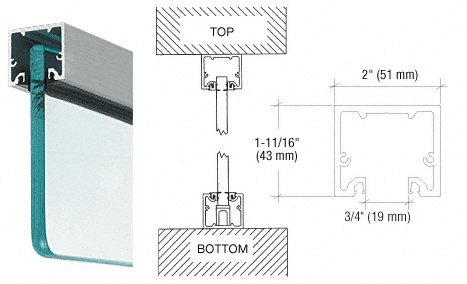

This Aluminum Extrusion was developed with three uses in mind:

(1) As a U-Channel that would be the same width as our Sidelite Rails and Door Rails;

(2) As a Narrow Header that is the same width as our Sidelite Rails and Door Rails, and will accept a Top Free-Swinging Pivot to secure the top of the doors;

(3) As an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6 mm) Header Saddle. All drilling, tapping, and fabrication can be done at your request during manufacturing to save time while installing.

Our policy for Quick Pick products is as follows: These products are stocked in our centralized service center, and upon your order will be shipped on our next re-supply truck to your regional CRL service center. Re-supply trucks ship every week, so if your regional service center does not have stock of the product you require, your order can be filled in just a few days.

You can check the stock availability of any CRL product when you click on the box above marked "CHECK STOCK AVAILABILITY".

Product Warning:

This material is Stainless Steel Cladded Aluminum and cannot be cut with a standard chop saw or abrasive blade. These will cause the Cladding to heat up and burn the finish. This material must be cut with a cold saw to prevent damage to the finish. For further information please contact Technical Sales.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
