• Matches Width of Door and Sidelite Rails and Accepts Roll-In Gasket, Top Pivot Block and Flush Snap-In Insert
• Available in Stock Lengths, Fabricated Headers, or Headers with Side Pockets for "Lift and Drop" Panel Glazing
• Special Sidelite Rail Adapter Allows for a Continuous Sight Line Using the Sidelite Rail in Conjunction with the Narrow Header

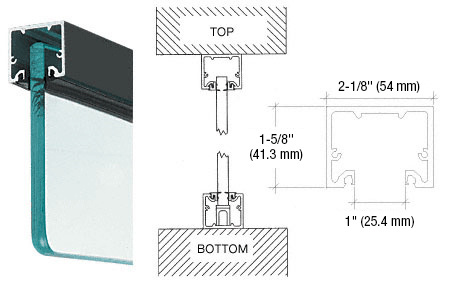

This CRL Wide U-Channel and Narrow Header was developed with three uses in mind: As a U-Channel that would be the same width as our Sidelite and Door Rails; as a Narrow Header that is the same width as our Sidelite and Door Rails, and will accept a top free-swinging pivot to secure the top of the doors; as an Even Sight Line System, accomplished by first securing the fabricated Narrow Header to the top of the opening, then securing the Sidelite Rail to the Narrow Header with the 1/4" (6.4 mm) header saddle. All drilling, tapping and fabrication is done during the manufacturing process to save time and prevent the need for field fabrication. For additional information, contact our Technical Sales Department for assistance.
