CRL Satin Anodized Wet Glaze 1" Deep U-Channel Custom Length
×
CRL Satin Anodized Wet Glaze 1" Deep U-Channel Custom Length
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized Wet Glaze 1" Deep U-Channel Custom Length Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 4/24/2025
Dallas, Texas 4/29/2025
Chicago (Elgin), Illinois 4/29/2025
San Francisco/Oakland (Union City), California 5/1/2025
Atlanta, Georgia 4/29/2025
New York Area (Secaucus, New Jersey) 5/6/2025
Boston (Taunton), Massachusetts 4/3/2025
Orlando, Florida 5/6/2025
Denver, Colorado 4/29/2025
Seattle (Kent), Washington 4/29/2025
Cleveland (Solon), Ohio 4/30/2025
Philadelphia Area (Moorestown, New Jersey) 5/2/2025
Phoenix, Arizona 5/1/2025
Las Vegas, Nevada 5/2/2025
Houston, Texas 4/29/2025
Miami, Florida 5/7/2025
San Diego, California 4/28/2025
Carolinas and Virginia, South Carolina 5/5/2025
Product Details
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    3/8 in. or 1/2 in. (10 mm or 12 mm)
  • Height
    1 in. (25 mm)
  • Length
    Specify
  • Width
    1 in. (25 mm)

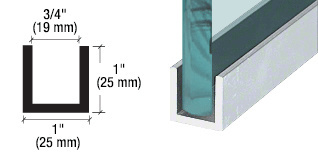

Product Overview
  • Shallow 1" (25.4 mm) Height
  • Use Monolithic Tempered Glass
  • Typically Used at the Bottom of Glass Panels
  • Use with Silicone (Wet) or Glazing Gasket (Dry)
  • Matching End Caps Sold Separately

CRL Shallow and Deep Wet/Dry Glaze U-Channels provide the smallest profile U-Channel for glazing 3/8" or 1/2" (10 or 12 mm) glass. They are available in six standard finishes in both 120" and 240" (3.05 and 6.10 m) stock lengths.



Wet/Dry Glaze U-Channels provide the most economical way to glaze heavy glass. Using a Deep U-Channel on the top and the Shallow U-Channel on the bottom allows for the 'lift and drop' method of glazing. The glass can be secured with silicone sealant or our Top Load Roll-In Glazing Gasket.

For Cladded U-Channels, custom finishes, or custom lengths, contact CRL Technical Sales Department.

Product Warning:

PS, BS, PB, SB, ORB Finishes are all Cladded.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
