CRL Black Bronze Anodized 240" U-Channel with Roll-In Top Load Gasket

Finish/Color : Black Bronze Anodized
Black Bronze Anodized
Item #: UCDU3812240
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : Stock Length

Shipping Weight : 15.6 Pounds
Shipping Limitations : No UPS - Common Carrier Only
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Black Bronze Anodized 240" U-Channel with Roll-In Top Load Gasket
×
CRL Black Bronze Anodized 240" U-Channel with Roll-In Top Load Gasket
Quantity Standard Price Sale Price Your Price
CRL Black Bronze Anodized 240" U-Channel with Roll-In Top Load Gasket Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 70
Dallas, Texas 17
Chicago (Elgin), Illinois 23
San Francisco/Oakland (Union City), California 9
Atlanta, Georgia 17
New York Area (Secaucus, New Jersey) 18
Boston (Taunton), Massachusetts 8
Orlando, Florida 16
Denver, Colorado 32
Seattle (Kent), Washington 20
Cleveland (Solon), Ohio 10
Philadelphia Area (Moorestown, New Jersey) 5/3/2024
Phoenix, Arizona 5/2/2024
Las Vegas, Nevada 28
Houston, Texas 18
Miami, Florida 28
San Diego, California 5/1/2024
Carolinas and Virginia, South Carolina 2

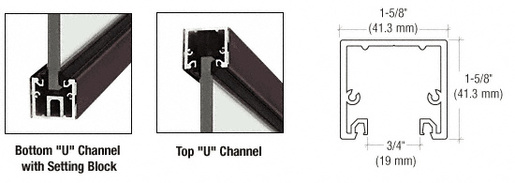

Product details
  • Finish/Color:
    Black Bronze Anodized
  • Glazing Thickness
    3/8 in. (10 mm)
  • Height
    1-5/8 in. (41 mm)
  • Length
    240 in. (6096 mm)
  • Width
    1-5/8 in. (41 mm)
Product Overview
  • Uses Top Loading Roll-In Glazing Gasket for 3/8" and 1/2" (10 and 12 mm) Glass
  • Ideal for Ceiling or Floor Installations
  • Use Monolithic Tempered Glass
  • Nine Standard Architectural Finishes
  • Custom Finishes and Powder Painting Available
  • Custom Lengths Available

CRL Regular U-Channel with Top Load Roll-In Glazing Gasket was designed to be used with our Patch Hardware, or our Header for Overhead Door Closers with Fixed Sidelites and Door Rail System. The design allows it to be surface or recessed mounted, with the Top Load Roll-In Glazing Gasket securing the glass.

NOTE: For installations using 1/2" (12 mm) glass, the Roll-In Glazing Gasket is included in the package. If using 3/8" (10 mm) glass the Roll-In Glazing Gasket must be ordered separately.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
