• Available for 3/8", 1/2", and 3/4" (10, 12, and 19 mm) Glass
• Use Monolithic Tempered Glass
• Standard Channel Requires No Holes in the Glass
• Available in Multiple Finishes
• Standard 10' (3.05 m) Lengths

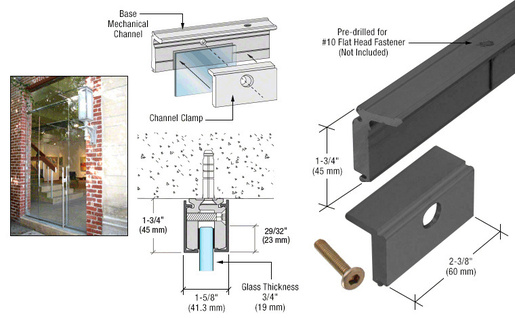

CRL Mechanical Glazing Channel is a dry glazed system that requires no wet silicone glazing. This two-piece front load clamp-on channel provides easier installation and is used where lift and drop applications are not possible. Pre-drilled and tapped holes for Channel Clamps are provided every 11-13/16" (300 mm) on center. Channel End Caps finish off the ends.

NOTE: No holes are required in the glass. Kits include: one Base Channel, ten Channel Clamps with Screws, and two Decorative Snap-On Covers. End Caps are sold separately.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures.
