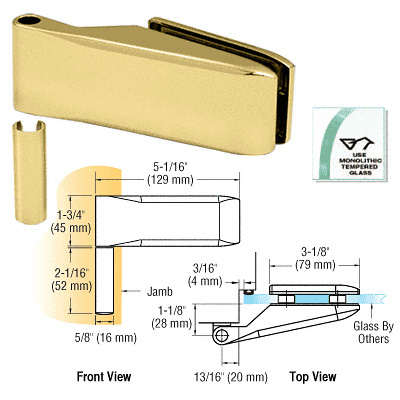

CRL Brass Barcelona Free Swinging Interior Door Hinge

Finish/Color : Polished Brass
Brushed Nickel
Polished Brass
Item #: PTH350BR
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each
Where to buy

View Technical References
Shipping Weight : 12.8 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Brass Barcelona Free Swinging Interior Door Hinge
×
CRL Brass Barcelona Free Swinging Interior Door Hinge
Quantity Standard Price Sale Price Your Price
CRL Brass Barcelona Free Swinging Interior Door Hinge Stock
Branch Location STOCK AVAILABILITY
Kent Ask Us 1.800.421.6144
Secaucus Ask Us 1.800.421.6144
Solon Ask Us 1.800.421.6144
Union City Ask Us 1.800.421.6144
Rock Hill Ask Us 1.800.421.6144
Hauppauge Ask Us 1.800.421.6144
San Diego Ask Us 1.800.421.6144
Atlanta Ask Us 1.800.421.6144
Orlando Ask Us 1.800.421.6144
Moorestown Ask Us 1.800.421.6144
Hamilton Ask Us 1.800.421.6144
Phoenix Ask Us 1.800.421.6144
Hazelwood Ask Us 1.800.421.6144
Los Angeles 16
Denver Ask Us 1.800.421.6144
Sunrise Ask Us 1.800.421.6144
Elgin Ask Us 1.800.421.6144
Taunton Ask Us 1.800.421.6144
Dallas Ask Us 1.800.421.6144
Tampa Ask Us 1.800.421.6144
Las Vegas Ask Us 1.800.421.6144
Valencia Ask Us 1.800.421.6144
Houston Ask Us 1.800.421.6144
Related Products
Product Details Product Overview Technical References & CAD Drawings
Product Details
  • Finish/Color:
    Polished Brass
  • Glass Mounting Holes Diameter
    5/8 in. (16 mm)
  • Glass Mounting Holes Required
    2
  • Glazing Thickness
    5/16 in. (8 mm)
  • Maximum Panel Weight
    100 lbs. (45.4 kg)
Back to Top
Product Overview
  • Solid Brass Construction
  • Available in Three Finishes
  • For 5/16" or 3/8" (8 or 10 mm) Tempered Glass

The CRL Barcelona Free-Swinging Interior Door Hinge is of solid brass construction, and comes in three popular designer finishes.


This Hinge will swing open to 180 degrees, and can accommodate 5/16" or 3/8" (8 or 10 mm) fully tempered glass with a maximum weight of 99 lbs. (45 kg), and a width of 39" (990 mm) per pair of hinges.

Glass Fabrication: Two 5/8" (16 mm) holes required per hinge.

Mounting Brackets are ordered separately, and there are three models to choose from. Mounting Brackets and installation options are available. For companion lock sets see our PTH Series Latches.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Brass Finish Advisory:
Although durable, brass is prone to oxidation. It can give brass and brass finishes a tarnished look, regardless of how the hardware is initially packaged or stored. For more information, view the Brass Finish Disclaimer found in the Technical References section below.
Back to Top
Technical References & CAD Drawings
CAD Drawings - pdf
PTH350 Detailed CAD Drawings.pdf
Cleaning & Maintenance
Brass Finish Disclaimer
