CRL Polished Stainless OXXO Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail

Item #: SDR4FPS
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 0.16 Ounces
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Polished Stainless OXXO Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
×
CRL Polished Stainless OXXO Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail
Quantity Standard Price Sale Price Your Price
CRL Polished Stainless OXXO Format Sliding Door Entrance System - 4" Top and Bottom Tapered Rail Stock
Branch Location STOCK AVAILABILITY
Kent 0
Secaucus 0
Solon 0
Union City 0
Rock Hill 0
Hauppauge 0
San Diego 0
Atlanta 0
Orlando 0
Moorestown 0
Hamilton 0
Phoenix 0
Hazelwood 0
Los Angeles 0
Denver 0
Sunrise 0
Elgin 0
Taunton 0
Dallas 0
Tampa 0
Las Vegas 0
Valencia 0
Houston 0
Product Details
  • Door Configuration
    OXXO
  • Door Type
    Sliding
  • Finish/Color:
    Polished Stainless Steel
  • Maximum Door Height
    108 in. (2743 mm)
  • Maximum Door Width
    48 in. (1219 mm)
  • Maximum Panel Weight
    234 lbs. (106.1 kg)
Product Overview
  • With 4" Tapered DR4T Series Door Rails
  • Available in Seven Architectural Finishes

The CRL SDR Bottom Rolling Sliding Door System with 4" (102 mm) Tapered Rails Top and Bottom utilizes our popular Wedge-Lock® Glass Securing System. The DR4T Series Door Rails are used for all door and fixed panels, and are custom fabricated to your specifications. The doors can be ordered with or without locks in the bottom rail. Maximum door width is 48" (1.22 m); maximum door height is 108" (2.74 m), with a maximum weight not to exceed 234 pounds (106 kg).

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

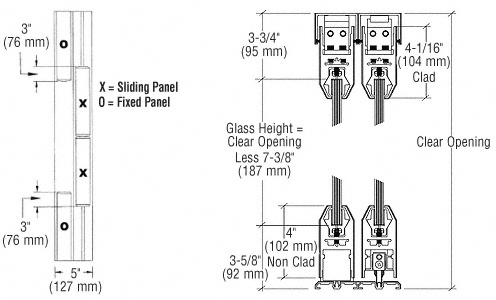

Technical References & CAD Drawings
