• Softbrake Braking System Included
• Single Sliding Door Kit for 5/16" to 3/8" (8 to 10 mm) Tempered Glass
• Maximum Weight 176lbs (80KG), Maximum Panel Width 59" (1.5 m)
• Kits Contain All Necessary Hardware to Complete the Installation
• 118" (3000 mm) Track Length
• Use Monolithic Tempered Glass

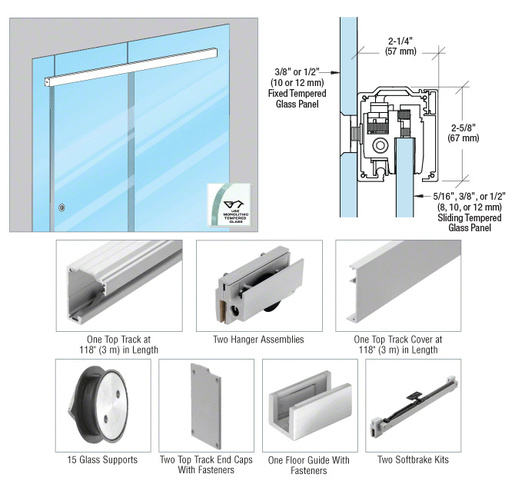

This configuration of the CRL285 Series Slider is used for single door applications where the top track mounts to a 3/8" or 1/2" (10 or 12 mm) fixed glass panel. Kit includes all the components you will need (except the tempered glass, channel, and pull hardware) to complete this style of installation. One "Softbrake" is required for each direction of travel to be controlled per panel. Minimum sliding panel width of 25-1/2" (650 mm) for control in a single direction; 39-3/8" (1000 mm) for control in both directions of travel. NOTE: Laminated glass should not be used.


Product Warning:

STRUCTURAL DISCLAIMER - All customers who in any way utilize this product are solely responsible to consult a structural engineer to determine the suitability of the product for the intended use and site conditions. All installers must be qualified and have professional knowledge about compliance with local, state and federal regulations, safety factors, and the appropriate choice of fixing material and procedures. Formatting for laminated glass.
