CRL Satin Anodized 6" x 10" LH Center Push Button Lock with Housing

Item #: DL610LCSC
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : NA
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL Satin Anodized 6" x 10" LH Center Push Button Lock with Housing
×
CRL Satin Anodized 6" x 10" LH Center Push Button Lock with Housing
Quantity Standard Price Sale Price Your Price
CRL Satin Anodized 6" x 10" LH Center Push Button Lock with Housing Stock
Branch Location STOCK AVAILABILITY
Los Angeles, California 5
Dallas, Texas 1/31/2025
Chicago (Elgin), Illinois 1
San Francisco/Oakland (Union City), California 1/30/2025
Atlanta, Georgia 2/3/2025
New York Area (Secaucus, New Jersey) 2
Boston (Taunton), Massachusetts 2/3/2025
Orlando, Florida 2/4/2025
Denver, Colorado 2/4/2025
Seattle (Kent), Washington 2/4/2025
Cleveland (Solon), Ohio 3
Philadelphia Area (Moorestown, New Jersey) 1/31/2025
Phoenix, Arizona 1/30/2025
Las Vegas, Nevada 1/31/2025
Houston, Texas 1/4/2025
Miami, Florida 2/5/2025
San Diego, California 1/29/2025
Los Angeles(Gardena) In Other Service Center
Carolinas and Virginia, South Carolina 2/4/2025
Product Details
  • Finish/Color:
    Satin Anodized
  • Glazing Thickness
    1/2 in. (12 mm)
  • Handing
    Left Hand
  • Height
    10 in. (254 mm)
  • Width
    6 in. (152 mm)
Product Overview
  • Requires No Electrical Connections
  • Complies with A.D.A. Standards
  • Five Finishes Available
  • Use Monolithic Tempered Glass

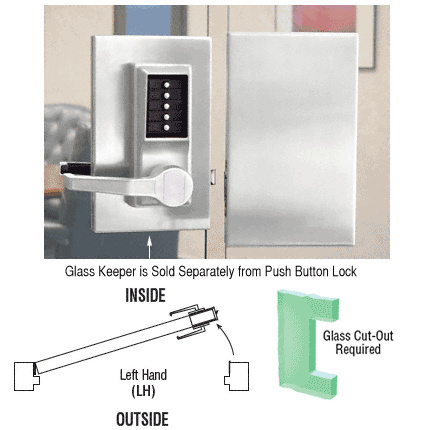

CRL Push Button Lock and Glass Keeper assemblies require no electrical connections so the mounting is exactly the same as our other 6" x 10" (152 x 254 mm) Center Locks. On the exterior side of the door is a Keypad with five vertical push buttons, numbered in sequential order from top to bottom. On the interior side there is a lever, which operates the Latchbolt at all times.

The lock complies with A.D.A. standards and is ideal for high frequency use in hospitals, entrances to commercial and industrial buildings, apartments, condominiums, schools, etc.

The Center Lock Glass Keeper (sold separately), is specially machined to accept the strike from the Push Button Lock. If a Center Lock Glass Keeper is not required, a Strike Plate for the jamb is supplied with the Push Button Lock assembly.

Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

Technical References & CAD Drawings
