• Extruded with Built-In Camber for Even Screen Tension
• .026" (.66 mm) Wall Thickness
• Four Finishes to Choose From
• Individually Polywrapped Stock Lengths

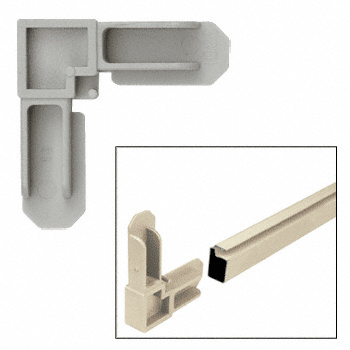

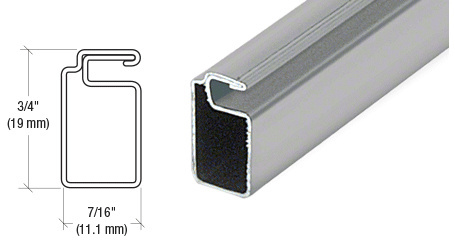

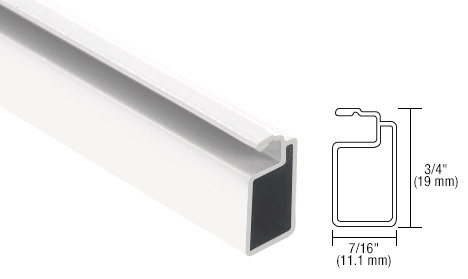

Box-type extruded .026 mil (.66 mm) thickness Frame uses our WSC107 or WSPC107 Mitered Corners or our SWSC716 Square Cut Corners, and our .180" size Spline. Lengths are extruded with built-in camber (slightly bowed) for even screen tension.


SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .026" (.66 mm)
Uses Spline Size: .180" (4.6 mm)
Uses Corners: WSC107 or WSPC107 for Mitered Corners; SWSC716 for Square Cut Corners


Product Warning:

Stock lengths must ship common carrier unless specifically cut for UPS shipment.
