CRL 24V DC 2A Filtered and Regulated Power Supply with Auto-Operator Interface

Item #: 301420
View Prices with a Purchase Account
Minimum Order Quantity : 1
Unit of Measure : each

Shipping Weight : 9.45 Pounds
Shipping Limitations : None
Compliance and Restrictions
Warning Reproductive Harm - www.p65warnings.ca.gov
CRL 24V DC 2A Filtered and Regulated Power Supply with Auto-Operator Interface
×
CRL 24V DC 2A Filtered and Regulated Power Supply with Auto-Operator Interface
Quantity Standard Price Sale Price Your Price
CRL 24V DC 2A Filtered and Regulated Power Supply with Auto-Operator Interface Stock
Branch Location STOCK AVAILABILITY
Product Details
  • AC Power Input (Volts)
    120,240
  • Auxiliary DC Output (Amps)
    1
  • Auxiliary DC Output (Volts)
    24
  • DC Output (Amps)
    2
  • DC Output (Volts)
    24
  • Type
    Filtered And Unregulated
Product Overview
  • Filtered and Regulated 24V DC Output - 2A Max
  • Auto-Operator Interface Adds Control of Openings with Both Electrified Door Hardware and Automatic Door Operator
  • Automatically Accepts 120V AC or 240V AC Input
  • Auxiliary 24V DC Output - 1A Max

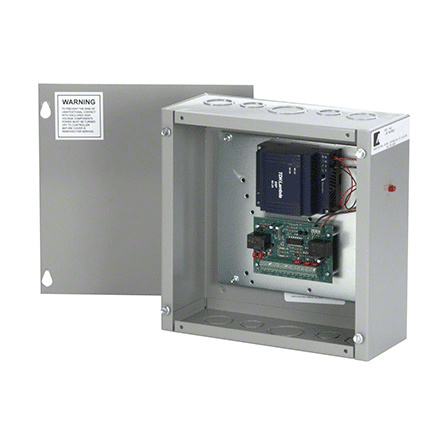

This CRL Power Supply provides a regulated and filtered 24V DC at 2 amp output. It provides the necessary electronics for controlling a complete automated door opening system by coordinating the control of electrified door hardware and an automatic door operator, resulting in a proper sequence of operation from the beginning to the end of the cycle. Up to two devices can be controlled by this Power Supply.

  • Separate 24V DC Outputs for Fail Safe and Fail Secure Electrified Door Hardware.
  • Input for Optional Fire Alarm or Emergency Release
  • Built-in Time Delay Between Activation of Electrified Door Hardware and Automatic Door Operator
  • Auxiliary 24V DC Output - 1 amp
  • Automatically Accepts 120V AC or 240V AC Input
  • UL Listed and Tested to 294 Standard for Access Control Systems

    Most shipping weights are approximate and have not been verified. If the exact weight is needed in order to determine shipping costs, and shipping costs are required in order for you to complete your order, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation. Colors can vary depending on your computer's video card and on how your monitor's color is adjusted.

  • Technical References & CAD Drawings
